TLE52052GAUMA1: Features, Specs & More
In the ever-evolving world of automotive electronics, the Infineon TLE52052GAUMA1 stands out as a reliable H-Bridge motor driver designed to meet the demanding needs of modern vehicles. In this comprehensive article, we'll delve into the intricacies of the TLE52052GAUMA1, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TLE52052GAUMA1's Overview

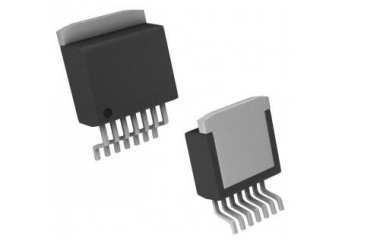

The Infineon TLE52052GAUMA1 is a robust and versatile H-Bridge Motor Driver designed for automotive applications. Meeting the stringent AEC-Q100 standard, this component ensures high reliability and performance in harsh environments. Its 8-Pin D2PAK packaging offers a compact and efficient solution for surface-mount applications.
Key Features
Let's delve into the standout features that make the TLE52052GAUMA1 a standout in the world of electronics:
· The TLE52052GAUMA1 delivers up to 5 A continuous and 6 A peak current, making it suitable for demanding applications that require significant power handling.
· It operates within a supply voltage range of 5.3 to 40 V, accommodating various system requirements.
· With a typical RDS(on) of 200 mΩ at 25°C per switch, it ensures minimal power loss and efficient operation.
· The driver includes output short-circuit protection, overtemperature protection with hysteresis, and diagnosis capabilities to prevent damage and ensure longevity.
· Features such as short-circuit and open load diagnosis with an open-drain error flag facilitate troubleshooting and maintenance.
· Prevents operation under insufficient voltage conditions, safeguarding the device and connected components.
· The inputs are compatible with CMOS/TTL logic levels, providing flexibility in interfacing with various control systems.
· Designed to operate within a wide temperature range of -40°C to 150°C, making it suitable for harsh environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TLE52052GAUMA1:
Type | Parameter |
Type | Motor Driver |
Motor Type | DC Motor |
Output Configuration | H-Bridge |
Minimum Operating Supply Voltage (V) | 5.3 |
Operating Supply Voltage (V) | 5.3 to 40 |
Maximum Operating Supply Voltage (V) | 40 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 4.4 |
Package Width | 9.25 |
Package Length | 10 |
PCB changed | 7 |
Tab | Tab |
Standard Package Name | TO-263 |
Supplier Package | D2PAK |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The Infineon TLE52052GAUMA1 is primarily used in automotive applications where precise control of DC motors is required. Its robust design and high-temperature tolerance make it ideal for:
· Power window and mirror adjustment systems
· Sunroof control mechanisms
· Seat adjustment motors
· HVAC system actuators
· Electronic throttle control systems
TLE52052GAUMA1's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon TLE52052GAUMA1 H-Bridge Motor Driver is a versatile and reliable component that excels in both automotive and industrial settings. With its robust specifications, wide operating voltage range, and automotive-grade qualification, it stands out as an excellent choice for applications requiring durable and precise motor control.
