What Are RF Modules?
In modern electronics, Radio Frequency (RF) modules are key components in wireless communication, driving technological innovation and application development. As the demand for wireless communication grows, RF modules are becoming increasingly prevalent in various electronic devices. This article provides a comprehensive overview of RF modules, including their definition, working principles, features, advantages, types, and applications.
Catalog
I. What are RF Modules?
RF modules are specialized electronic components designed for handling RF signals. They integrate both RF transmission and reception functions, allowing wireless data transfer and reception across various frequency bands (such as 2.4GHz, 5GHz, etc.). These modules are commonly made using RF CMOS technology and are widely used in devices like radios, Bluetooth, Wi-Fi, and GPS systems.
II. Working Principles
RF modules operate through several key steps:
· Signal Transmission: The RF module modulates audio or data signals into RF signals using a modulation circuit. These RF signals are then transmitted into the air via an antenna, enabling wireless communication.
· Signal Reception: The receiver section of the RF module captures the RF signals from the air using an antenna and demodulates them into analog or digital signals that can be processed.
· Signal Processing: The received signals are amplified and decoded by processing circuits to restore the original data for use by subsequent devices.
III. Features and Advantages
· Efficient Transmission: RF modules provide efficient wireless data transfer, reducing the need for traditional wired connections and enhancing communication flexibility.
· High Integration: Modern RF modules combine transmission and reception functions, simplifying design and improving system stability and reliability.
· Wide Applicability: RF modules support multiple frequency bands and protocols, making them suitable for various applications, including radio, Bluetooth, and Wi-Fi.
· Remote Control: RF modules enable remote operation and control, increasing the convenience and functionality of devices.
IV. Types of RF Modules

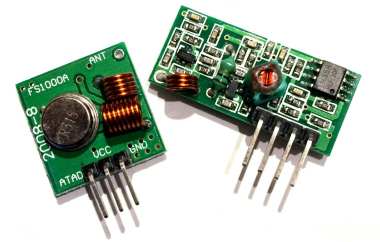

· Transmitter Modules: These modules are responsible for transmitting RF signals and modulating them to carry data. They are typically used with a microcontroller that provides data to be transmitted. Regulatory requirements often limit transmitter modules regarding maximum power output, harmonics, and frequency band edges.
· Receiver Modules: These modules receive and demodulate RF signals. Common types include superheterodyne receivers, which offer high accuracy and stability, and superregenerative receivers, which are cost-effective but less stable and more affected by temperature and power supply variations.
· Transceiver Modules: Combining both transmission and reception functions, transceiver modules are generally designed for half-duplex operation, though full-duplex modules are available at a higher cost due to added complexity.
· System on Chip (SoC) Modules: SoC modules integrate both transmission and reception functions with an onboard processor for handling data packetization and protocol management. These modules are ideal for designs requiring protocol processing without incorporating it into the main microcontroller.
V. Applications
RF modules are widely used in various electronic designs, including garage door openers, wireless alarm systems, industrial remote controls, smart sensor applications, and wireless home automation systems. They are also increasingly replacing older infrared communication designs due to their advantage of not requiring line-of-sight.
Common carrier frequencies for RF modules include those in the Industrial, Scientific, and Medical (ISM) bands, such as 433.92 MHz, 915 MHz, and 2400 MHz. Short-range devices may also use unlicensed frequencies like 315 MHz and 868 MHz.
RF modules often support multiple wireless standards, including Zigbee, Bluetooth Low Energy (BLE), Wi-Fi, IEEE 802.15.4, and Z-Wave, and can also use proprietary protocols for specific applications, such as garage door openers.
VI. Conclusion
Overall, RF modules have a promising future in the electronics industry, with ongoing advancements driving progress in wireless communication and smart devices. As 5G technology develops, RF modules will face higher technical demands and challenges. Future RF modules are expected to feature higher frequencies, smaller sizes, and greater integration. Additionally, the rise of the Internet of Things (IoT) and smart cities will further propel the development of RF modules across more application scenarios. Future RF modules will need to offer enhanced performance while meeting stricter power consumption and size requirements.
