XR17V358IB176-F: Features, Specs & More
In the ever-evolving world of electronics, the MaxLinear XR17V358IB176-F stands out as a powerful single-chip solution that bridges PCI Express to UART. This versatile component is engineered for high-performance applications, delivering reliable connectivity and efficiency in various systems. In this comprehensive article, we'll delve into the intricacies of the XR17V358IB176-F, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
XR17V358IB176-F's Manufacturer
XR17V358IB176-F's Overview

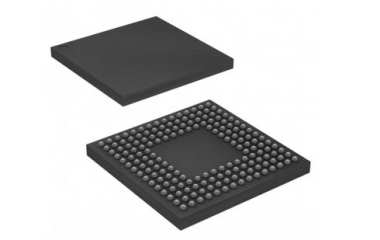

The MaxLinear XR17V358IB176-F is a high-performance PCIe to UART bridge that enables efficient data communication between PCI Express buses and UART (Universal Asynchronous Receiver/Transmitter) interfaces. It is designed to provide seamless integration for systems requiring multiple serial communication channels.
Key Features
Let's delve into the standout features that make the XR17V358IB176-F a standout in the world of electronics:
· The XR17V358IB176-F operates efficiently with a single 3.3V power supply, simplifying your design and reducing power consumption.
· It includes an internal buck regulator that converts the 3.3V supply to a 1.2V core voltage for enhanced power efficiency.
· This chip is compliant with PCIe 2.0 Gen 1 with x1 link and dual simplex data transfers of 2.5 Gbps in each direction.
· It achieves data rates of up to 31.25 Mbps for rapid and efficient serial communication.
· It offers 16 multi-purpose inputs/outputs (MPIOs) and a 16-bit general-purpose timer/counter for diverse applications.
· The chip includes automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis, as well as software flow control with Xon/Xoff.
· It incorporates IrDA 1.1 data encoding/decoding for versatile infrared communication.
· It facilitates multi-drop setups with auto address detection and RS-485 half-duplex direction control for flexible network configurations.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the XR17V358IB176-F:
Type | Parameter |
Bridge Type | PCIe to UART |
GPIO | No |
Minimum Operating Supply Voltage (V) | 2.97 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.63 |
Maximum Power Dissipation (mW) | 500 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Mounting | Surface Mount |
Package Height | 1.05 |
Package Width | 13 |
Package Length | 13 |
PCB changed | 176 |
Standard Package Name | BGA |
Supplier Package | LFBGA |
Pin Count | 176 |
Lead Shape | Ball |
Applications
The XR17V358IB176-F is designed to excel in various applications:
· Next-Generation Point-of-Sale Systems: Enhancing connectivity and communication efficiency in modern retail environments.
· Remote Access Servers: Facilitating reliable serial communication for remote system management.
· Storage Network Management: Integrating seamlessly with storage systems for improved data handling.
· Factory Automation and Process Control: Ensuring precise and dependable control in automated industrial processes.
· Multi-Port RS-232/RS-422/RS-485 Cards: Providing versatile communication options for diverse multi-port card applications.
XR17V358IB176-F's Manufacturer
Founded in 2003, MaxLinear is a fabless company that provides systems-on-chip (SoC) solutions used for broadband, mobile and wireline infrastructure, data center, and industrial and multi-market applications. MaxLinear’s highly integrated semiconductor devices and platform-level solutions are primarily manufactured using low-cost CMOS process technology. It is a New York Stock Exchange-traded company.
Conclusion
The MaxLinear XR17V358IB176-F is a powerful and versatile component that can elevate your electronic designs. With its advanced features, robust specifications, and broad range of applications, it stands out as an essential tool for professionals seeking reliable and high-speed UART communication solutions.
