USBLC6-2SC6Y: Features, Specs & More
In the rapidly evolving world of electronics, safeguarding sensitive components from electrostatic discharge (ESD) is critical. One such solution is the STMicroelectronics USBLC6-2SC6Y. In this comprehensive article, we'll delve into the intricacies of the USBLC6-2SC6Y, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
USBLC6-2SC6Y's Overview

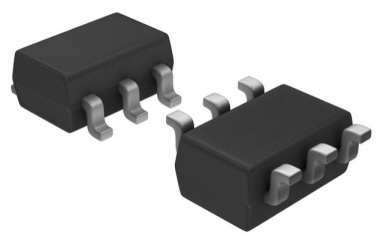

The USBLC6-2SC6Y is a uni-directional diode array specifically designed to protect electronic circuits from ESD damage. Manufactured by STMicroelectronics, a global leader in semiconductor solutions, this component is optimized for use in high-speed data transmission environments, such as USB 2.0 and Ethernet ports. Its robust design complies with the stringent AEC-Q101 automotive quality standard, ensuring reliability in demanding conditions.
Key Features
Let's delve into the standout features that make the USBLC6-2SC6Y a standout in the world of electronics:
· The diode array consists of two elements per chip, providing comprehensive protection across multiple lines.
· Capable of withstanding up to 5.25V, this component is suitable for protecting circuits operating at standard USB voltages.
· The diode array features a maximum clamping voltage of 17V at 8/20µs, effectively limiting the voltage that could otherwise damage sensitive components.
· Operating with a maximum leakage current of 0.15µA, the component minimizes power consumption, making it suitable for energy-efficient designs.
· Designed to operate reliably between -40°C and 150°C, the USBLC6-2SC6Y is suitable for harsh automotive environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the USBLC6-2SC6Y:
Type | Parameter |
Type | Diode Array |
Configuration | Dual |
Direction Type | Uni-Directional |
Number of Elements per Chip | 2 |
Maximum Working Voltage (V) | 5.25 |
Minimum Breakdown Voltage (V) | 6 |
Maximum Clamping Voltage (V) | 17@8/20us |
Maximum Peak Pulse Current (A) | 5@8/20us |
Maximum Leakage Current (uA) | 0.15 |
Capacitance Value (pF) | 3.5 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 150 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.3(Max) |
Package Width | 1.75(Max) |
Package Length | 3(Max) |
PCB changed | 6 |
Standard Package Name | SOT |
Supplier Package | SOT-23 |
Pin Count | 6 |
Lead Shape | Gull-wing |
Applications
The versatility of the USBLC6-2SC6Y allows it to be used in various applications, particularly where high-speed data transmission and ESD protection are critical:
· USB 2.0 Ports: The component is ideal for protecting USB 2.0 ports, which can operate at speeds of up to 480 Mb/s, from ESD.
· USB 1.1 Compatibility: It's also compatible with USB 1.1 ports, ensuring backward compatibility with older devices.
· Smart Junction Boxes: Used in automotive applications, the USBLC6-2SC6Y protects high-speed data lines in smart junction boxes from ESD.
· Ethernet Ports: The diode array is suitable for protecting 10/100 Mb/s Ethernet ports, ensuring reliable data transmission in networked environments.
· Video Line Protection: It can also be used to protect video lines from ESD, ensuring clear and uninterrupted signal transmission.
USBLC6-2SC6Y's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics USBLC6-2SC6Y is a high-performance ESD suppressor diode array designed to protect sensitive electronic components in high-speed data lines. With its robust features, wide operating temperature range, and compliance with automotive standards, it is an ideal solution for applications requiring reliable ESD protection.
