TS321IYLT: Features, Specs & More
In the ever-evolving world of electronics, the STMicroelectronics TS321IYLT stands out as a highly efficient and reliable component for various applications. This single low-power operational amplifier (Op-Amp) is designed to deliver exceptional performance across a broad range of operating conditions, making it an ideal choice for automotive and industrial applications. In this comprehensive article, we'll delve into the intricacies of the TS321IYLT, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TS321IYLT's Overview

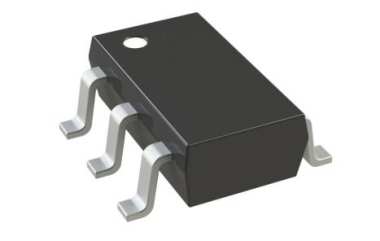

The STMicroelectronics TS321IYLT is a single-channel, low-power operational amplifier designed for high-performance applications. It operates over a wide voltage range and is housed in a compact 5-pin SOT-23 package, making it suitable for space-constrained environments. This amplifier is engineered using bipolar process technology, offering both single and dual power supply configurations.
Key Features
Let's delve into the standout features that make the TS321IYLT a standout in the world of electronics:
· With a maximum quiescent current of just 0.8 mA at 5V, the TS321IYLT is designed for low-power applications, ensuring minimal energy usage while maintaining high performance.
· The TS321IYLT supports a broad range of supply voltages, from a minimum of 3V to a maximum of 30V for single supply, and ±1.5V to ±15V for dual supply configurations.
· The amplifier features a maximum input offset voltage of 4 mV at 30V, ensuring accurate signal amplification and minimal distortion.
· It operates effectively within a temperature range of -40°C to 125°C, making it suitable for automotive and harsh environmental conditions.
· With a typical voltage gain of 100 dB and a typical gain-bandwidth product of 0.8 MHz, the TS321IYLT provides precise and stable amplification for demanding applications.
· The amplifier has a typical input bias current of 0.02 μA, contributing to its high precision and stability.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TS321IYLT:
Type | Parameters |
Type | Low Power Amplifier |
Manufacturer Type | Low Power Amplifier |
Number of Channels per Chip | 1 |
Process Technology | Bipolar |
Maximum Input Offset Voltage (mV) | 4@30V |
Minimum Single Supply Voltage (V) | 3 |
Maximum Single Supply Voltage (V) | 30 |
Minimum Dual Supply Voltage (V) | ±1.5 |
Typical Dual Supply Voltage (V) | ±3|±5|±9|±12 |
Maximum Dual Supply Voltage (V) | ±15 |
Maximum Input Offset Current (uA) | 0.03@5V |
Typical Input Bias Current (uA) | 0.02@5V |
Maximum Input Bias Current (uA) | 0.15@5V |
Maximum Quiescent Current (mA) | 0.8@5V |
Typical Output Current (mA) | 40@15V |
Power Supply Type | Single|Dual |
Typical Slew Rate (V/us) | 0.4@15V |
Typical Input Noise Voltage Density (nV/rtHz) | 40@5V |
Typical Voltage Gain (dB) | 100 |
Minimum CMRR (dB) | 65 |
Minimum CMRR Range (dB) | 65 to 70 |
Typical Gain Bandwidth Product (MHz) | 0.8 |
Shut Down Support | No |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Supplier Temperature Grade | Automotive |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.3(Max) |
Package Width | 1.75(Max) |
Package Length | 3(Max) |
PCB changed | 5 |
Standard Package Name | SOT |
Supplier Package | SOT-23 |
Pin Count | 5 |
Lead Shape | Gull-wing |
Applications
The TS321IYLT is versatile and can be employed in a variety of applications, including:
· Automotive Electronics: Its automotive-grade temperature range and low power consumption make it ideal for use in automotive control systems and sensors.
· Industrial Equipment: Suitable for signal conditioning and amplification in industrial machinery, where reliability and performance are crucial.
· Consumer Electronics: Its compact size and efficient performance are beneficial for consumer electronic devices that require precise signal amplification.
TS321IYLT's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics TS321IYLT operational amplifier stands out as a versatile and efficient component tailored for a wide range of applications. Its low power consumption, broad supply voltage range, and robust performance across a wide temperature spectrum make it an excellent choice for automotive, industrial, and consumer electronic applications.
