What Are High Efficacy Rectifiers?

In the modern electronics industry, high efficacy rectifiers play an indispensable role. As the demand for energy efficiency and device performance continues to rise, these rectifiers are increasingly utilized across various electronic devices due to their superior conversion efficiency and outstanding performance. This article will explore the definition, working principles, characteristics and advantages, and applications of high efficacy rectifiers.

Catalog

I. What are High Efficacy Rectifiers?

II. Working Principles

III. Characteristics and Advantages

IV. Applications

V. Conclusion

I. What are High Efficacy Rectifiers?

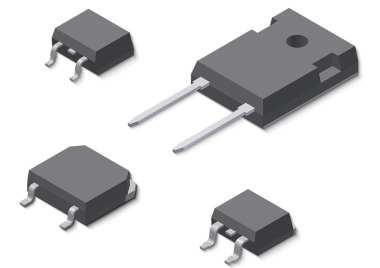

High efficacy rectifiers are electronic devices primarily used to convert alternating current (AC) into direct current (DC). Typically constructed from semiconductor materials with low forward voltage drop, such as silicon or gallium nitride, these rectifiers minimize energy loss during the conversion process, enhancing the overall energy efficiency of the system.

II. Working Principles

The working principle of high efficacy rectifiers is based on their internal diodes or transistors. The main processes involved are as follows:

· AC Input: The rectifier receives the input signal from the AC power source.

· Conducting and Switching Off: By controlling the flow of current, the rectifier switches on and off at appropriate times to convert AC to DC.

· DC Output: Ultimately, the rectifier outputs a stable direct current for use by the load.

III. Characteristics and Advantages

· High Efficiency: High efficacy rectifiers typically have energy conversion efficiencies exceeding 90%, significantly reducing energy waste, especially under high-load conditions.

· Low Forward Voltage Drop: Compared to traditional rectifiers, high efficacy rectifiers have a forward voltage drop reduced to below 0.3V, resulting in minimal heat generation during current flow, thereby extending the device's lifespan.

· Compact Design: High efficacy rectifiers often feature compact packaging designs, making them suitable for applications where space is limited, and facilitating their integration into various electronic products.

· High Switching Speed: These rectifiers have a fast switching speed, allowing them to quickly respond to changes in current and adapt to various dynamic load conditions.

IV. Applications

Due to their superior performance, high efficacy rectifiers are widely used across multiple fields, including but not limited to:

· Switching Power Supplies: In devices such as computers, power adapters, and LED drivers, they effectively enhance power supply efficiency and reduce energy consumption.

· Electric Vehicles: In the charging systems and powertrains of electric vehicles, high efficacy rectifiers help improve overall energy efficiency and extend battery life.

· Industrial Automation: In power management for various industrial equipment, these rectifiers provide greater stability and reliability.

· Renewable Energy: In solar inverters and wind power generation systems, high efficacy rectifiers enhance energy conversion efficiency, promoting the adoption of renewable energy.

V. Conclusion

As a vital component in the electronics industry, high efficacy rectifiers are gaining increasing attention for their exceptional performance and broad application prospects. With ongoing technological advancements and a growing demand for energy efficiency, the market demand for high efficacy rectifiers is expected to continue rising.
