AD8368ACPZ-REEL7: Features, Specs & More
In the world of electronics, variable gain amplifiers (VGAs) are essential components that allow for precise control of signal levels. One standout product in this category is the ADI AD8368ACPZ-REEL7, a high-performance VGA designed to meet the demands of various applications. In this comprehensive article, we'll delve into the intricacies of the AD8368ACPZ-REEL7, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
AD8368ACPZ-REEL7's Manufacturer
AD8368ACPZ-REEL7's Overview
The AD8368ACPZ-REEL7 is a single-channel variable gain amplifier developed by Analog Devices Inc. (ADI). This amplifier is engineered to provide precise control over gain levels, making it ideal for applications where signal integrity is paramount. Its ability to adjust gain dynamically allows for improved performance in environments where signal conditions can vary widely.
Key Features
Let's delve into the standout features that make the AD8368ACPZ-REEL7 a standout in the world of electronics:
· Operating with a maximum supply voltage of 5.5V and a minimum of 4.5V, this amplifier is well-suited for battery-operated devices and low-power applications.
· With a maximum voltage gain range of less than 35 dB and a typical gain of 22 dB, users can fine-tune their signal amplification with precision.
· The amplifier features a maximum input bias current of only 150 μA, which is beneficial for minimizing power consumption.

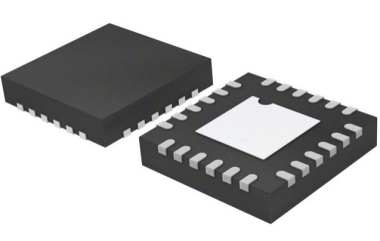

· Housed in a 24-pin LFCSP EP (Lead Frame Chip Scale Package) with a small footprint, the AD8368ACPZ-REEL7 is ideal for space-constrained applications.
· It operates effectively within a wide temperature range from -40°C to 85°C, making it suitable for various environmental conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the AD8368ACPZ-REEL7:
Type | Parameter |
Type | Variable Gain Amplifier |
Number of Elements per Chip | 1 |
Number of Channels per Chip | 1 |
Maximum Voltage Gain Range (dB) | <35 |
Maximum Voltage Gain (dB) | 22(Typ) |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Supply Voltage Range (V) | 5 to 7 |
Minimum Single Supply Voltage (V) | 4.5 |
Typical Single Supply Voltage (V) | 5 |
Maximum Single Supply Voltage (V) | 5.5 |
Maximum Input Bias Current (uA) | 150@5V |
Maximum Supply Current (mA) | 60(Typ)@5V |
Maximum Input Resistance (MOhm) | 0.00005 |
Maximum Power Dissipation (mW) | 440 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Power Supply Type | Single |
Mounting | Surface Mount |
Package Height | 0.73 |
Package Width | 4 |
Package Length | 4 |
PCB changed | 24 |
Standard Package Name | CSP |
Supplier Package | LFCSP EP |
Pin Count | 24 |
Lead Shape | No Lead |
* AD8368ACPZ-REEL7's Datasheet
Applications
The versatility of the AD8368ACPZ-REEL7 makes it an excellent choice for various applications, including:
· Complete IF AGC Amplifiers: Ideal for intermediate frequency (IF) automatic gain control (AGC) circuits in communication devices.
· Gain Trimming and Leveling: Useful in applications that require precise signal level adjustments to ensure optimal performance.
· Cellular Base Stations: A vital component in enhancing the signal quality and reliability of mobile communications.
· Point-to-Point Radio Links: Provides stable gain control for high-frequency radio communication systems.
· RF Instrumentation: Enhances measurement accuracy in various RF testing and measurement applications.
AD8368ACPZ-REEL7's Manufacturer
Analog Devices, Inc. (ADI) stands as a global leader in analog and mixed-signal technology, pioneering transformative solutions since 1965. Renowned for innovation, ADI's diverse portfolio of high-performance integrated circuits spans precision amplifiers, data converters, sensors, and digital signal processing.
Conclusion
In conclusion, the AD8368ACPZ-REEL7 variable gain amplifier stands out as a versatile and high-performance solution for a range of electronic applications. Its impressive specifications, coupled with a broad range of applications, make it an essential component for engineers and designers in the electronics industry.
