STM32H743VIT6: Features, Specs & More
In today's fast-paced electronics landscape, choosing the right microcontroller can significantly influence your project's success. The STM32H743VIT6 from STMicroelectronics stands out as a top contender for various applications, thanks to its impressive features and robust performance. In this comprehensive article, we'll delve into the intricacies of the STM32H743VIT6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

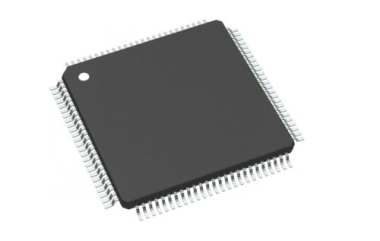

STM32H743VIT6's Overview
The STM32H743VIT6 is a high-performance microcontroller unit (MCU) belonging to the STM32H family. It employs a 32-bit ARM Cortex M7 core, designed for applications that require advanced processing capabilities and efficiency. With its 480 MHz clock frequency and extensive memory options, it serves as an ideal solution for a wide range of electronic projects.
Key Features
Let's delve into the standout features that make the STM32H743VIT6 a standout in the world of electronics:
· Operating at a maximum frequency of 480 MHz, the STM32H743VIT6 is built for demanding tasks that require rapid data processing.
· It boasts 2MB of Flash memory and 1060KB of RAM, ensuring ample space for applications and efficient data handling.
· This MCU supports multiple communication protocols, including CAN, Ethernet, I2C, SPI, USB, and more, making it adaptable to various project requirements.
· With 82 I/Os, 18 timers, and a range of ADC and DAC channels, it can handle complex input/output operations effortlessly.
· Designed to operate in harsh environments, it supports temperatures from -40°C to 85°C, making it suitable for industrial applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32H743VIT6:
Type | Parameter |
Family Name | STM32H |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M7 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 480 |
Maximum Clock Rate (MHz) | 480 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 2MB |
RAM Size | 1060KB |
Maximum Expanded Memory Size | 4GB |
Programmability | Yes |
Process Technology | 40nm |
Interface Type | CAN/Ethernet/I2C/I2S/SPI/UART/USART/USB |
Number of I/Os | 82 |
No. of Timers | 18 |
PWM | 4 |
Number of ADCs | Triple |
ADC Channels | 16/16/16 |
ADC Resolution (bit) | 16/16/16 |
Number of DACs | Single |
DAC Channels | 2 |
DAC Resolution (bit) | 12 |
USART | 4 |
UART | 5 |
USB | 2 |
SPI | 6 |
I2C | 4 |
I2S | 3 |
CAN | 2 |
Ethernet | 1 |
Watchdog | 2 |
Analog Comparators | 2 |
Parallel Master Port | No |
Real Time Clock | Yes |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 1.71 |
Typical Operating Supply Voltage (V) | 3.3|2.5|1.8 |
Maximum Operating Supply Voltage (V) | 3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
Applications
The versatility of the STM32H743VIT6 makes it suitable for a myriad of applications, including but not limited to:
· Motor Drive and Control: Perfect for applications requiring precise control over motor functions.
· Medical Equipment: Ideal for devices that demand high reliability and efficiency.
· Industrial Applications: Utilized in PLCs, inverters, and circuit breakers for enhanced operational performance.
· Consumer Electronics: Integrated into printers, scanners, and home audio appliances for superior functionality.
· IoT and Mobile Applications: Facilitates connectivity and smart functions in wearable devices and home automation systems.
STM32H743VIT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STM32H743VIT6 microcontroller by STMicroelectronics represents a powerful tool for engineers and developers. With its high-speed performance, extensive memory, and versatile applications, it stands ready to tackle the challenges of today's electronic projects.
