LP5562TMX/NOPB: Features, Specs & More
In the ever-evolving world of electronics, selecting the right components is crucial for ensuring optimal performance and efficiency. One such component that stands out is the TI LP5562TMX/NOPB LED Driver. In this comprehensive article, we'll delve into the intricacies of the LP5562TMX/NOPB, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LP5562TMX/NOPB's Overview

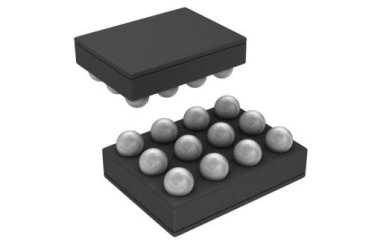

The TI LP5562TMX/NOPB is a four-segment LED driver that operates with a maximum supply current of 1000 µA. It's designed to drive LED segments for applications such as fun lights, indicator lights, and keypad RGB backlighting. The chip is housed in a compact 12-pin DSBGA package, making it ideal for space-constrained designs.
Key Features
Let's delve into the standout features that make the LP5562TMX/NOPB a standout in the world of electronics:
· With the ability to drive up to four segments, the LP5562TMX/NOPB allows for versatile lighting options in your projects.
· This driver operates between 2.7V and 5.5V, ensuring compatibility with various power supplies and enhancing design flexibility.
· The device can deliver a maximum output current of 24 mA per segment, providing bright and vivid illumination.
· The LP5562TMX/NOPB operates efficiently in extreme conditions, with a temperature range from -40°C to 85°C.
· The surface-mount packaging minimizes the footprint on your PCB, allowing for compact electronic designs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LP5562TMX/NOPB:
Type | Parameter |
Number of Segments | 4 |
Minimum Operating Supply Voltage (V) | 2.7 |
Maximum Operating Supply Voltage (V) | 5.5 |
Typical Operating Supply Voltage (V) | 3.3|5 |
Output Voltage (V) | 2.7 to 5.5 |
Maximum Supply Current (uA) | 1000(Typ) |
Maximum Output Current (mA) | 24 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.47(Max) |
Package Width | 1.25(Max) |
Package Length | 1.65(Max) |
PCB changed | 12 |
Standard Package Name | BGA |
Supplier Package | DSBGA |
Pin Count | 12 |
Lead Shape | Ball |
Applications
The TI LP5562TMX/NOPB LED driver is designed for a variety of applications, making it a versatile choice for engineers:
· Fun Lights: Ideal for decorative lighting in toys and novelty items.
· Indicator Lights: Perfect for signaling purposes in various electronic devices.
· Keypad RGB Backlighting: Enhances user interfaces by providing colorful backlighting for keypads and buttons.
· Phone Cosmetics: Adds aesthetic appeal to mobile devices, improving user experience.
LP5562TMX/NOPB's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI LP5562TMX/NOPB LED Driver is a powerful component that can significantly enhance your electronic designs. With its robust features, flexible voltage range, and compact packaging, it's an excellent choice for various applications.
