TPS7A7002DDA: Features, Specs & More
When it comes to designing efficient electronic systems, the choice of voltage regulators can significantly impact performance and reliability. The Texas Instruments TPS7A7002DDA is a high-performance low-dropout (LDO) regulator that offers exceptional voltage regulation capabilities for various applications. In this comprehensive article, we'll delve into the intricacies of the TPS7A7002DDA, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

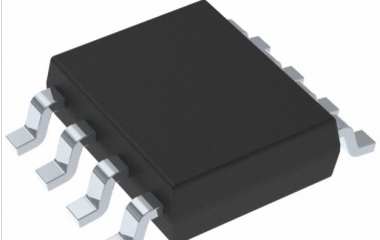

TPS7A7002DDA's Overview
The TI TPS7A7002DDA is a low-dropout (LDO) voltage regulator that provides a stable output voltage ranging from 0.5V to 5.15V with a maximum output current of 3A. Unlike traditional voltage regulators, LDOs have a simple design and minimal noise, making them ideal for sensitive applications where power stability is paramount. The TPS7A7002DDA is designed for applications that require high precision and performance, ensuring your devices operate efficiently and reliably.
Key Features
Let's delve into the standout features that make the TPS7A7002DDA a standout in the world of electronics:
· The regulator can output a voltage range from 0.5V to 5.15V, allowing flexibility in various applications.
· With a maximum output current of 3A, it can power demanding loads.
· The dropout voltage is minimal, at 0.38V at 2A, ensuring efficient operation even under varying load conditions.
· This feature prevents damage to the regulator by shutting it down in case of overheating.
· Protects both the regulator and the load from excessive current draw.
· With line regulation at 0.2%/V and load regulation at 0.25%/A, it ensures stable output voltage even with fluctuating input conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TPS7A7002DDA:
Type | Parameter |
Type | LDO |
Number of Outputs | 1 |
Polarity | Positive |
Accuracy (%) | ±3 |
Output Type | Adjustable |
Output Voltage (V) | 0.5 to 5.15 |
Maximum Output Current (A) | 3 |
Minimum Input Voltage (V) | 1.425 |
Maximum Input Voltage (V) | 6.5 |
Maximum Dropout Voltage @ Current (V) | 0.38@2A|0.2@1A|0.6@3A |
Reference Voltage (V) | 0.5(Typ) |
Line Regulation | 0.2%/V(Typ) |
Load Regulation | 0.25%/A(Typ) |
Junction to Ambient | 46.4°C/W |
Junction to Case | 54.2°C/W |
Special Features | Thermal Shutdown Protection|Current Limit |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 1.55(Max) |
Package Width | 4(Max) |
Package Length | 5(Max) |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | HSOIC EP |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The TPS7A7002DDA is suitable for a wide range of applications, including:
· Telecom and Networking Cards: Providing stable power to communication devices.
· Motherboards and Peripheral Cards: Ensuring reliable voltage supply for critical components.
· Industrial Equipment: Supporting various industrial applications with robustness.
· Wireless Infrastructure: Delivering power to wireless communication devices.
· Set-Top Boxes: Enhancing performance in consumer electronics.
· Medical Equipment: Offering reliability in life-critical devices.
· Notebook Computers: Powering essential components efficiently.
· Battery-Powered Systems: Optimizing performance while minimizing power consumption.
TPS7A7002DDA's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
The TI TPS7A7002DDA LDO regulator stands out as an exceptional choice for designers looking for efficiency and reliability in their electronic systems. With its adjustable output voltage, high output current, and advanced protective features, it is well-suited for a variety of applications, from telecommunications to medical devices.
