What Are Darlington Transistors?
Darlington transistors are a special type of transistor in the electronic components industry, consisting of two transistors connected in series. Due to their high current gain and excellent switching performance, Darlington transistors are widely used in various electronic circuits, particularly in applications requiring high current drive. This article will explore the definition, working principle, characteristics and advantages, applications, and other aspects of Darlington transistors.
Catalog
I. What Are Darlington Transistors?
III. Characteristics and Advantages
I. What Are Darlington Transistors?

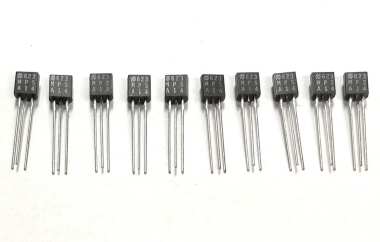

A Darlington transistor is a composite device formed by connecting two transistors, typically of the NPN or PNP type. The emitter of the first transistor is connected to the base of the second transistor, allowing for the amplification of the input signal. This configuration enables the Darlington transistor to provide a relatively large output current from a small input current, resulting in a very high current gain.
II. Working Principle
The working principle of a Darlington transistor can be described simply: when an input current flows through the base of the first transistor, it controls the conduction of that transistor. At this point, the collector current (IC1) of the first transistor flows to the base of the second transistor, further amplifying the signal. As a result, the collector current (IC2) of the second transistor is an amplified version of the input current, effectively multiplying the input current through the entire Darlington pair.
III. Characteristics and Advantages
· High Current Gain: Darlington transistors typically offer a current gain of over 1000, making them suitable for applications requiring high gain.
· Simplified Circuit Design: Due to their high gain characteristics, they can drive larger loads with smaller input signals, thereby simplifying circuit design.
· Excellent Switching Performance: They perform exceptionally well in motor drive and relay control applications.
· Strong Compatibility: Darlington transistors can be used with various types of circuits and components, enhancing overall system performance.
IV. Applications
Darlington transistors have found widespread application in multiple areas, including:
· Power Amplifiers: Used for signal amplification in audio and RF applications.
· Switching Power Supplies: Serve as switching elements to provide stable power output.
· Automation Control: Control motors and actuators in household appliances and industrial automation equipment.
· Signal Processing: Act as key components for signal amplification and processing in some sensors and signal conditioning circuits.
V. Considerations
Despite the many advantages of Darlington transistors, there are several points to be mindful of:
· Saturation Voltage: The saturation voltage of Darlington transistors is relatively high, which may lead to power loss.
· Switching Speed: Although they provide high gain, their switching speed is often slower, necessitating careful selection for high-frequency applications.
· Temperature Effects: Variations in temperature can impact the performance of Darlington transistors, making effective thermal management crucial.
VI. Conclusion
Darlington transistors play an indispensable role in the electronic components industry, thanks to their high gain and excellent switching performance. As electronic technology continues to evolve, the range of applications for Darlington transistors is expanding, moving beyond traditional power amplification and switching power supplies to more complex circuit designs and embedded systems. They are not just a conventional electronic component; they are critical components that will play a significant role in the future of electronic products.
