SN74LVC1T45DRLR: Features, Specs & More
In the fast-paced world of electronics, ensuring seamless communication between devices operating at different voltage levels is crucial. In this comprehensive article, we'll delve into the intricacies of the SN74LVC1T45DRLR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
SN74LVC1T45DRLR's Manufacturer
SN74LVC1T45DRLR's Overview

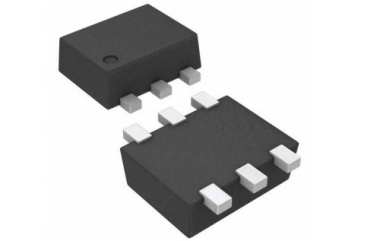

The TI SN74LVC1T45DRLR is a 1-channel bidirectional voltage level translator housed in a compact 6-pin SOT-563 package. Its primary function is to facilitate seamless communication between circuits operating at different voltage levels, making it a vital component in mixed-voltage systems.
Key Features
Let's delve into the standout features that make the SN74LVC1T45DRLR a standout in the world of electronics:
· The SN74LVC1T45 allows signals to pass in both directions, making it ideal for various applications where voltage levels need to be adapted dynamically.
· Housed in a 6-pin SOT-563 package, this translator offers a minimal footprint, essential for space-constrained designs.
· The device supports supply voltages from 1.65V to 5.5V, accommodating a wide range of electronic components.
· With a maximum quiescent current of just 0.004 mA, it is highly energy-efficient, making it suitable for battery-operated devices.
· With a propagation delay time of just 17.7 ns at 1.8V, the SN74LVC1T45 ensures quick response times essential for high-speed applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the SN74LVC1T45DRLR:
Type | Parameter |
Logic Family | LVC |
Logic Function | Voltage Level Translator |
Channel Type | Bidirectional |
Number of Channels | 1 |
Maximum Propagation Delay Time @ Maximum CL (ns) | 17.7@1.8V |
Absolute Propagation Delay Time (ns) | 36.2 |
Minimum High Level Input Voltage (V) | 1.7 |
Process Technology | CMOS |
Minimum Latch-Up Current (mA) | 100 |
Output Type | 3-State |
Maximum Low Level Output Current (mA) | 32 |
Maximum High Level Output Current (mA) | -32 |
Minimum Operating Supply Voltage (V) | 1.65 |
Typical Operating Supply Voltage (V) | 1.8|2.5|3.3|5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Maximum Quiescent Current (mA) | 0.004 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 0.55(Max) |
Package Width | 1.3(Max) |
Package Length | 1.7(Max) |
PCB changed | 6 |
Standard Package Name | SOT |
Supplier Package | SOT-563 |
Pin Count | 6 |
Lead Shape | Flat |
Applications
The versatility of the SN74LVC1T45DRLR makes it suitable for a wide range of applications:
· Personal Electronics: Use in smartphones, tablets, and wearables to manage communication between different voltage components.
· Industrial Equipment: Essential in automation systems where various sensors and controllers operate at different voltage levels.
· Telecom: Facilitates communication in telecom infrastructure, ensuring reliable signal transmission.
· Enterprise Solutions: Integrates into networking devices for seamless operation across various systems.
SN74LVC1T45DRLR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In summary, the TI SN74LVC1T45DRLR is a vital component for any designer working with mixed-voltage systems. Its bidirectional capability, compact design, and impressive specifications make it an excellent choice for a wide range of applications, from personal electronics to industrial systems.
