ATMEGA16A-AU: Features, Specs & More
In the ever-evolving world of electronics, the Microchip ATMEGA16A-AU is an 8-bit microcontroller unit (MCU) that has garnered widespread attention due to its impressive performance, versatility, and efficiency. In this comprehensive article, we'll delve into the intricacies of the ATMEGA16A-AU, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ATMEGA16A-AU's Overview
The Microchip ATMEGA16A-AU is an 8-bit microcontroller (MCU) based on the AVR architecture. It operates with a RISC (Reduced Instruction Set Computing) design, ensuring efficient instruction processing for embedded applications. With 16KB of flash memory and 2KB of SRAM, it provides ample storage for embedded programs while maintaining a low power consumption profile, making it suitable for a variety of power-sensitive applications.
Key Features
Let's delve into the standout features that make the ATMEGA16A-AU a standout in the world of electronics:
· The ATMEGA16A-AU's advanced RISC (Reduced Instruction Set Computing) design ensures fast and efficient execution of instructions.
· With 16KB of Flash memory, the ATMEGA16A-AU allows for substantial program storage.
· This MCU operates on both 3.3V and 5V power supply, offering flexibility for different system voltage requirements.

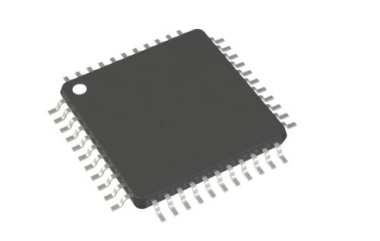

· The 44-pin TQFP (Thin Quad Flat Package) is designed for surface-mount technology.
· The gull-wing leads make for easy soldering and ensure a secure connection, improving the reliability of the device in high-performance applications.
· The ATMEGA16A-AU is an active part, meaning it is currently being manufactured and supported, ensuring long-term availability.
· The ATMEGA16A-AU falls under EAR99, meaning it is subject to Export Administration Regulations but does not have a specific designation for controlled exports.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ATMEGA16A-AU:
Type | Parameter |
EU RoHS | Compliant |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8542.31.00.15 |
Automotive | No |
PPAP | No |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 10.1(Max) |
Package Length | 10.1(Max) |
PCB changed | 44 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 44 |
Lead Shape | Gull-wing |
Applications
The Microchip ATMEGA16A-AU is highly versatile and finds application across various industries, including:
· Embedded Systems: Ideal for devices requiring a compact, low-power solution with significant memory for storing programs and data.
· Consumer Electronics: Used in a wide array of consumer devices, such as home appliances, smart gadgets, and remote controls.
· Automotive: Though not automotive-grade, its flexibility makes it suitable for some automotive applications like sensor systems and low-power control units.
· Industrial Controls: Commonly deployed in industrial automation systems, robotics, and machinery, where reliable performance is critical.
· IoT Devices: Perfect for Internet of Things (IoT) devices due to its low power consumption and ample memory.
ATMEGA16A-AU's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip ATMEGA16A-AU is an excellent choice for developers seeking a high-performance, low-power 8-bit microcontroller. With features like 16KB flash memory, a versatile 44-pin TQFP package, and dual voltage support (3.3V/5V), it provides an ideal solution for a wide variety of embedded applications.
