What Are Vacuum Diodes?
With the rapid advancements in modern electronics, semiconductor diodes have become the mainstream choice in many applications. However, vacuum diodes, as traditional electronic components, continue to hold an important position in certain specialized areas. Especially in high-power applications, audio amplification, and radio fields, vacuum diodes provide stable support for many electronic devices due to their unique working principles and excellent electrical properties. This article will provide a detailed overview of vacuum diodes, including their definition, working principle, characteristics, advantages, applications, types, and more.
Catalog
III. Characteristics and Advantages
I. What Are Vacuum Diodes?

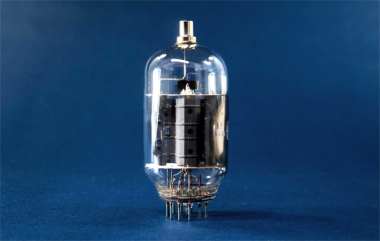

A vacuum diode is an electronic component that uses the flow of electrons in a vacuum environment to achieve current rectification and amplification. It consists of two basic parts: a cathode and an anode. The cathode is heated to release electrons, which then move through the vacuum and are attracted to the anode, forming a current. Because the electrons only flow in one direction, the vacuum diode effectively converts alternating current (AC) to direct current (DC), which was crucial in early electronic circuits.
II. Working Principle
The working principle of a vacuum diode is based on the thermionic emission effect. Under high voltage, the cathode is heated to a high temperature, releasing free electrons. These electrons move freely between the cathode and anode in the vacuum, as there is no other material to obstruct their movement. When an external voltage is applied, the electrons emitted from the cathode move toward the anode, forming a current. This directional electron flow ensures that the vacuum diode conducts only in one direction, providing rectification.
III. Characteristics and Advantages
· High Voltage Tolerance: Vacuum diodes can withstand higher voltages than semiconductor diodes, making them ideal for high-power applications. Their high voltage tolerance allows vacuum diodes to be widely used in power electronics.
· No Leakage Current: The vacuum environment in vacuum diodes means they have almost no leakage current, which ensures high reliability and stability under static conditions. Compared to semiconductor components, vacuum diodes offer greater stability in the direction of current flow.
· Thermal Stability: Vacuum diodes are highly adaptable to temperature changes and can operate under high-temperature conditions. This makes them suitable for extreme working environments while maintaining efficient operation.
· Good Linear Response: Compared to semiconductor diodes, vacuum diodes offer a better linear response, particularly in high-frequency and high-current applications, effectively avoiding nonlinear distortion.
IV. Applications
Vacuum diodes play a vital role in many specialized applications. Some of the major application fields include:
· Due to their ability to handle high voltages and large currents, vacuum diodes are commonly used in high-power rectifiers and inverters, making them ideal for power transmission and large-scale electrical equipment.
· Vacuum diodes have been widely used in radio transmitters and receivers, especially in early broadcast equipment, for signal amplification and rectification.
· Vacuum diodes have earned a place in high-fidelity (Hi-Fi) audio equipment due to their unique sound characteristics. They can produce warm, rich sound, and many audiophiles still prefer vacuum tube amplifiers for their superior audio quality.
· In certain medical devices, such as X-ray machines and CT scanners, vacuum diodes are used for signal processing and high-voltage control.
· Vacuum diodes are also applied in some laser technologies, especially in high-power lasers where stable current supply is required.
V. Types of Vacuum Diodes
Vacuum diodes come in various types based on their design and application:
· DC Rectifier Diode: These diodes are used to convert AC to DC and are widely applied in power electronics devices such as power supplies and inverters.
· High-Frequency Vacuum Diodes: Primarily used for high-frequency radio signal transmission and processing, these diodes are commonly found in radio transmitters and receivers.
· Audio Vacuum Diodes: Used in audio amplifiers, these diodes are prized for their distinct sound quality, making them particularly suitable for high-fidelity audio systems.
· Gas Discharge Diodes: This type of diode contains a small amount of gas and is used in specific high-voltage and high-frequency applications, often found in specialized industrial equipment.
VI. Conclusion
Although the rapid development of modern semiconductor technologies has gradually reduced the use of vacuum diodes, they still hold an irreplaceable role in certain specialized fields, such as high-power power supplies, radio stations, and audio amplifiers. As electronic technology continues to evolve, vacuum diodes will remain crucial in specific applications, continuing to adapt and develop to meet new technological demands.
