S25FL064LABMFI010: Features, Specs & More
In the fast-paced world of electronics, reliable and high-performance memory solutions are essential. Among these, Infineon Technologies has developed a standout product: the S25FL064LABMFI010, a high-speed NOR Flash memory chip. In this comprehensive article, we'll delve into the intricacies of the S25FL064LABMFI010, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
S25FL064LABMFI010's Manufacturer
S25FL064LABMFI010's Overview

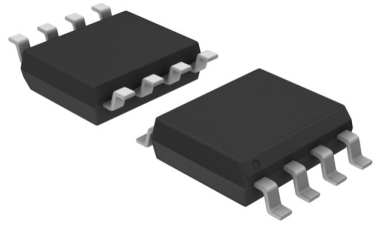

The S25FL064LABMFI010 is a 64M-bit NOR Flash memory chip built with advanced 65nm floating-gate technology. It operates with a serial interface, including SPI, Dual SPI, and Quad SPI modes, making it highly versatile and easy to integrate into a range of electronic systems. The memory features a symmetrical block organization, with boot block functionality located at either the top or bottom of the memory, ensuring flexibility in its application. Its synchronous timing type ensures high-speed access for applications requiring quick data retrieval.
Key Features
Let's delve into the standout features that make the S25FL064LABMFI010 a standout in the world of electronics:
· With a maximum access time of 8ns, the chip can operate at frequencies up to 108 MHz, ensuring rapid read/write cycles.
· It operates within a typical voltage range of 3V to 3.3V and can withstand a maximum operating supply voltage of 3.6V, making it ideal for a variety of power-sensitive applications.
· With a 64M-bit capacity, it offers ample storage for both small and large-scale applications.
· The chip’s sector size of 4KB allows for efficient memory management, making it suitable for systems that require flexible memory partitioning.
· It supports programmable memory, with a maximum programming time of 1.35ms per page and a maximum erase time of 150 seconds per chip.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the S25FL064LABMFI010:
Type | Parameter |
Cell Type | NOR |
Chip Density (bit) | 64M |
Architecture | Sectored |
Boot Block | Yes |
Block Organization | Symmetrical |
Location of Boot Block | Bottom|Top |
Address Bus Width (bit) | 32 |
Sector Size | 4Kbyte x 2048 |
Page Size | 256byte |
Number of Bits/Word (bit) | 1/2/4 |
Number of Words | 64M/32M/16M |
Programmability | Yes |
Timing Type | Synchronous |
Max. Access Time (ns) | 8 |
Maximum Erase Time (S) | 150/Chip |
Maximum Programming Time (ms) | 1.35/Page |
Process Technology | 65nm, Floating Gate |
Interface Type | Serial (SPI, Dual SPI, Quad SPI) |
Maximum Operating Frequency (MHz) | 108 |
Minimum Operating Supply Voltage (V) | 2.7 |
Typical Operating Supply Voltage (V) | 3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Programming Voltage (V) | 2.7 to 3.6 |
Operating Current (mA) | 30 |
Program Current (mA) | 25 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Command Compatible | Yes |
ECC Support | No |
Support of Page Mode | No |
Minimum Endurance (Cycles) | 100000 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.9(Max) |
Package Width | 5.28 |
Package Length | 5.28 |
PCB changed | 8 |
Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 8 |
Lead Shape | Gull-wing |
* S25FL064LABMFI010's Datasheet
Applications
The S25FL064LABMFI010 is ideal for applications that require fast, reliable data storage with low power consumption. Its versatility and high-speed performance make it well-suited for:
· Embedded Systems: As a key component in microcontroller-based systems, it provides a robust solution for storing boot code, configuration data, and program data.
· Automotive Electronics: The chip’s industrial-grade temperature rating and high endurance make it perfect for automotive control units, infotainment systems, and sensors.
· Consumer Electronics: Devices such as smart home products and gaming consoles can benefit from the chip’s fast read/write speeds and compact size.
· Industrial Applications: With its wide operating voltage range and reliability, it is suitable for use in industrial controllers, data loggers, and networking equipment.
S25FL064LABMFI010's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon S25FL064LABMFI010 is a high-performance NOR Flash memory chip designed to meet the demands of modern electronic systems. With its high-speed access, wide operating voltage range, and industrial-grade endurance, it is an excellent choice for a variety of applications, from embedded systems to automotive electronics. Infineon Technologies continues to lead the way in semiconductor innovation, ensuring that products like the S25FL064LABMFI010 meet the highest standards of quality and performance.
