TPS61032PWPR: Features, Specs & More
As the demand for energy-efficient solutions in portable electronics continues to rise, finding the right power management components becomes essential. The Texas Instruments TPS61032PWPR stands out as an excellent option for developers looking for a compact, high-efficiency step-up converter. In this comprehensive article, we'll delve into the intricacies of the TPS61032PWPR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
TPS61032PWPR's Overview
The TPS61032PWPR is a synchronous step-up DC-DC converter designed to convert low input voltages (ranging from 1.8V to 5.5V) into a stable 5V output, delivering up to 1A of current. This makes it ideal for a range of battery-operated applications, such as MP3 players, PDAs, and other portable devices. Its high efficiency—up to 96%—and compact design make it a popular choice for modern electronics, where power consumption and space-saving are critical.
Key Features
Let's delve into the standout features that make the TPS61032PWPR a standout in the world of electronics:
· With a 96% efficiency rating, the TPS61032PWPR minimizes power loss and ensures your device stays energy-efficient, which is crucial for prolonging battery life.
· It supports input voltages from 1.8V to 5.5V, making it suitable for a variety of battery-powered applications, including those with single or dual-cell batteries.
· The fixed 5V output is a standard for many electronic devices, simplifying power management in products that require a stable voltage supply.
· The TPS61032PWPR has a typical quiescent current of 20µA, which reduces standby power consumption and helps extend battery life.

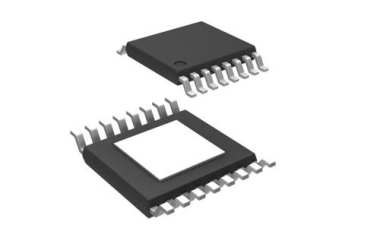

· This converter comes in a 16-pin HTSSOP EP package, which ensures easy surface-mounting and a compact footprint, perfect for space-constrained designs.
· With an operating temperature range of -40°C to 125°C, it can operate in a variety of environments, making it suitable for harsh conditions.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the TPS61032PWPR:
Type | Parameter |
Type | Synchronous Step Up |
Output Type | Fixed |
Switching Frequency (kHz) | 600(Typ) |
Switching Regulator | Yes |
Number of Outputs | 1 |
Output Voltage (V) | 5 |
Maximum Output Current (A) | 1 |
Minimum Input Voltage (V) | 1.8 |
Maximum Input Voltage (V) | 5.5 |
Operating Supply Voltage (V) | 1.8 to 5.5 |
Typical Switch Current (A) | 4 |
Typical Quiescent Current (uA) | 20 |
Line Regulation | 0.6% |
Load Regulation | 0.6% |
Efficiency (%) | 96 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.05(Max) |
Package Width | 4.5(Max) |
Package Length | 5.1(Max) |
PCB changed | 16 |
Standard Package Name | SO |
Supplier Package | HTSSOP EP |
Pin Count | 16 |
Lead Shape | Gull-wing |
Applications
The TPS61032PWPR is designed for use in battery-powered applications that require a 5V output. Its high efficiency and small footprint make it suitable for:
· MP3 Players
· PDAs (Personal Digital Assistants)
· Portable Electronics
· Single or Dual Cell Li-Ion and Li-Polymer Battery Operated Devices
· Wireless Communication Devices
This versatile converter is also used in various handheld and portable applications where space is limited, and power efficiency is a priority.
TPS61032PWPR's Manufacturer
Texas Instruments (TI), established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.
Conclusion
In conclusion, the TI TPS61032PWPR is an outstanding synchronous step-up converter that offers significant advantages in terms of efficiency, size, and versatility. Whether you are designing a portable device that runs on battery power or need a reliable 5V power source, this DC-DC converter will meet your needs with ease. Texas Instruments’ expertise and commitment to quality ensure that the TPS61032PWPR will provide long-term performance for a wide range of applications.
