What Is A TCXO?

With advancements in technology and the increasing demand for high-precision clock sources, Temperature Compensated Crystal Oscillators (TCXO) have become an essential component in the electronics industry. TCXOs play a crucial role in mobile communications, positioning systems, and the Internet of Things (IoT) due to their exceptional frequency stability and wide range of applications. This article will explore the definition, working principles, characteristics, advantages, and applications of TCXOs.

Catalog

I. What is a TCXO?

II. How Does a TCXO Work?

III. Key Features and Advantages

IV. Common Applications

V. Conclusion

I. What is a TCXO?

A Temperature Compensated Crystal Oscillator (TCXO) is a specially designed oscillator that incorporates a temperature compensation circuit to reduce the impact of temperature fluctuations on the crystal's frequency, ensuring high stability under varying temperature conditions. Compared to traditional crystal oscillators (XO), TCXOs offer greater frequency precision, making them particularly suitable for applications that require strict frequency stability. The typical operating frequency range is from 10 MHz to 52 MHz, with some high-frequency models reaching several hundred MHz.

II. How Does a TCXO Work?

The core of a TCXO is a quartz crystal oscillator, which is typically affected by changes in the surrounding temperature, leading to frequency drift. To address this issue, TCXOs integrate a temperature compensation circuit. A temperature sensor continuously monitors the ambient temperature, transmitting the data to a compensation network. The TCXO then adjusts the crystal oscillator’s output frequency accordingly to offset the effects of temperature changes, maintaining a stable frequency output.

III. Key Features and Advantages

· High Frequency Stability: TCXOs generally offer a frequency stability range of ±0.1 ppm to ±2.5 ppm, far superior to the ±10 to ±100 ppm range of standard XOs. This makes them ideal for applications that demand high-frequency precision.

· Wide Temperature Range: TCXOs typically operate within a temperature range of -40°C to +85°C, making them suitable for harsh environments.

· Low Power Consumption: Compared to Oven-Controlled Crystal Oscillators (OCXOs), TCXOs consume less power. Some models can have a current consumption as low as 1 mA, making them ideal for mobile devices and portable applications.

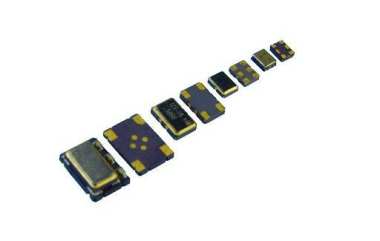

· Compact Design: TCXOs are smaller in size, sitting between standard XOs and high-precision OCXOs. This makes them perfect for designs with space constraints.

IV. Common Applications

· Cellular Base Stations (4G/5G), Satellite Communication Terminals (e.g., GPS/Beidou Modules)

· Wireless RF Devices (e.g., Walkie-Talkies, Microwave Transmission)

· Industrial Sensors (requiring long-term stable timing)

· Medical Monitoring Equipment (e.g., ECG Machines, Ventilators)

· High-End Smartphones (Assisted Location Modules), Wearable Devices

V. Conclusion

As a high-stability, high-precision clock source, the Temperature Compensated Crystal Oscillator (TCXO) plays a vital role in the electronics industry. With the continuous development of 5G, IoT, and smart devices, the demand for accurate timing and frequency stability is growing, leading to a sustained increase in the TCXO market. Future TCXOs will continue to evolve towards smaller sizes, lower power consumption, and higher precision. At the same time, their applications will expand, especially in emerging sectors such as precision instrumentation, smart homes, and drones, creating even more demand for TCXOs in the coming years.
