What Are VCOs?
In modern electronic technology, Voltage-Controlled Oscillators (VCOs) are critical components. Their unique ability to adjust the output frequency by controlling the input voltage makes them widely applicable across various fields. Whether in wireless communication, radar systems, testing equipment, or in frequency synthesis and phase-locked loop (PLL) technologies, VCOs play a key role. This article will explore the definition, working principle, characteristics and advantages, and applications of VCOs.
Catalog
III. Characteristics and Advantages
I. What are VCOs?

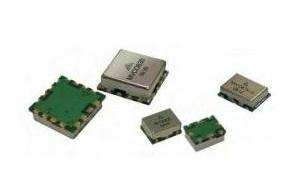

A Voltage-Controlled Oscillator (VCO) is an electronic oscillator that adjusts its output frequency based on changes in the input voltage. The working principle of a VCO is based on the variation of circuit parameters, such as capacitance or inductance, which determine the frequency of oscillation. VCOs are commonly used in applications requiring adjustable frequencies, such as frequency synthesis, modulation/demodulation, and phase locking.
II. Working Principle
The basic working principle of a VCO is to change its oscillation frequency by adjusting components such as capacitors or inductors within the circuit. Specifically, the VCO circuit typically includes an oscillator core and a control input to adjust the voltage. As the input voltage changes, the VCO adjusts the internal parameters of the circuit, which in turn alters the output frequency. For example, in an LC oscillator, the inductance (L) and capacitance (C) together determine the oscillation frequency. By adjusting the capacitance value, the output frequency can be precisely controlled. Voltage control is typically achieved through a varactor diode or similar component, which alters its capacitance when the voltage changes, thereby affecting the oscillation frequency.
III. Characteristics and Advantages
· Flexible Frequency Adjustment: VCOs can be finely tuned over a wide frequency range to meet the needs of various applications.
· Stability: High-quality VCOs offer excellent frequency stability and low phase noise, ensuring signal purity.
· High Integration: VCOs can be integrated with PLLs and filters on a single chip (e.g., using CMOS technology).
· Low Power Consumption: With advancements in technology, VCOs have become more power-efficient, making them suitable for portable and low-power devices.
IV. Applications
· Wireless Communication: In mobile phones, base stations, and other wireless devices, VCOs are used to generate carrier signals for modulation and demodulation.
· Frequency Synthesizers: VCOs are used to generate multiple discrete or continuous frequency signals to meet the requirements of different communication standards.
· Phase-Locked Loops (PLLs): VCOs are key components of PLLs, helping to lock the frequency and phase by comparing with a reference signal.
· Radar Systems: VCOs generate pulse signals at different frequencies to detect and locate targets.
· Testing and Measurement: In signal generators, spectrum analyzers, and other test equipment, VCOs are used to produce adjustable signal sources to assist engineers in signal analysis and equipment calibration.
V. Conclusion
As an essential component in the electronic components industry, Voltage-Controlled Oscillators (VCOs) are driving innovation and development across multiple sectors. With continuous technological advancements, VCOs are expected to achieve breakthroughs in higher frequencies, lower power consumption, greater stability, and higher integration. Whether in wireless communication, testing equipment, radar systems, or frequency synthesis, VCOs will continue to play an irreplaceable role in advancing modern electronics.
