2R5TPE470M9: Features, Specs & More
In the ever-evolving world of electronics, selecting the right components is essential for achieving high performance and reliability. One such critical component is the Panasonic 2R5TPE470M9 polymer capacitor. This capacitor is a part of the polymer series, offering excellent capacitance, low equivalent series resistance (ESR), and optimal voltage tolerance. In this comprehensive article, we'll delve into the intricacies of the 2R5TPE470M9, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
2R5TPE470M9's Overview

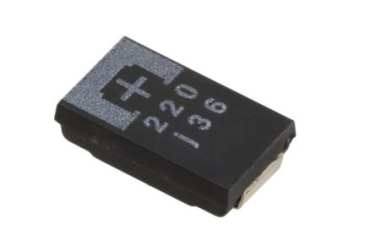

The Panasonic 2R5TPE470M9 is a polymer-based, surface-mount electrolytic capacitor designed for use in compact and high-performance electronic circuits. With a capacitance of 470µF and a rated voltage of 2.5V DC, it caters to applications that require low ESR (0.009 ohms) and high capacitance in a small form factor. The D2E case style and 7343 package make this capacitor ideal for modern compact circuit designs, offering a versatile, reliable, and efficient solution for power applications.
Key Features
Let's delve into the standout features that make the 2R5TPE470M9 a standout in the world of electronics:
· One of the standout features of the 2R5TPE470M9 is its low equivalent series resistance (ESR) of 0.009 ohms.
· With a capacitance of 470µF, this capacitor is well-suited for power supply circuits and other applications that require high charge storage.
· This capacitor can operate within a temperature range of -55°C to 105°C, making it suitable for a variety of demanding environments, from consumer electronics to industrial systems.
· Being a polarized capacitor, it must be installed with the correct polarity to ensure safe operation and longevity.
· The 7.3mm x 4.3mm x 1.8mm dimensions make this capacitor a great choice for space-constrained designs.
· The inward L termination style and surface-mount construction ensure easy integration into modern automated assembly lines.
· With tape and reel packaging, this capacitor can be efficiently handled during the manufacturing process, reducing labor costs and improving production throughput.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 2R5TPE470M9:
Type | Parameter |
Type | Polymer |
Capacitance Value | 470uF |
Tolerance | 20% |
Voltage | 2.5VDC |
ESR (Ohm) | 0.009 |
Equivalent Series Resistance Type | Low |
IR (mA) | 3.9 |
IL (uA) | 117.5 |
Polarity | Polar |
Maximum Dissipation Factor (%) | 10 |
Special Features | Low ESR |
Fail Safe with Built-in Fuse | No |
High Shock and Vibrating | No |
Case Code | D2E |
Case Style | Molded |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Inward L |
Number of Terminals | 2 |
Size (mm) | 7.3 X 4.3 X 1.8 |
Package/Case | 7343 |
Temperature Range @ Derated Voltage (°C) | 85 to 105 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 105 |
Packaging | Tape and Reel |
Product Length (mm) | 7.3 |
Product Depth (mm) | 4.3 |
Product Height (mm) | 1.8 |
Applications
The Panasonic 2R5TPE470M9 capacitor is ideal for applications where compact size, high capacitance, and low ESR are essential. Below are a few areas where this capacitor excels:
· Power Supply Circuits: Its low ESR and high capacitance make it perfect for DC-DC converters, voltage regulators, and other power supply applications where stable performance is needed under varying loads.
· Consumer Electronics: The compact size and reliable performance at high temperatures make it a great choice for smartphones, tablets, and laptops, where space and energy efficiency are paramount.
· Automotive Electronics: The wide temperature range and durability of the 2R5TPE470M9 ensure it performs well in automotive power systems, especially in start-stop systems and infotainment devices.
· Industrial Equipment: Whether it's telecommunications or industrial automation, the robust nature of this capacitor makes it well-suited for industrial power supplies and motor drives.
· Medical Devices: In medical electronics, the low ESR and high reliability of this component help maintain the stable operation of life-critical systems.
2R5TPE470M9's Manufacturer
Founded in 1918, Panasonic Corporation has established itself as an industry titan in the electronic components sector. With a rich history spanning over a century, Panasonic has been at the forefront of technological innovation, consistently shaping the landscape of electronic advancements. Renowned for its commitment to quality and precision, Panasonic has become a trusted name in the global market. The company's dedication to pushing the boundaries of what's possible in electronic engineering has led to the creation of cutting-edge products, including the PANASONIC 4TPE470MCL capacitor.
Conclusion
The Panasonic 2R5TPE470M9 capacitor offers a robust combination of low ESR, high capacitance, and compact size, making it a top choice for designers and engineers working on power circuits in compact and high-performance electronic devices. Its reliable operation across a wide temperature range and the ability to perform in challenging environments make it an indispensable component for many applications.
