What Is A DIN Rail Power Supply?
In industries like industrial automation, electrical control, and energy management, a stable and efficient power supply system is crucial. DIN rail power supplies, designed specifically for mounting on DIN rails, are widely used across the globe due to their high efficiency, standardized installation method, and reliability. This article will explore the definition, working principle, characteristics and advantages, applications, and more about DIN rail power supplies.
Catalog
I. What is a DIN Rail Power Supply?
III. Characteristics and Advantages
I. What is a DIN Rail Power Supply?

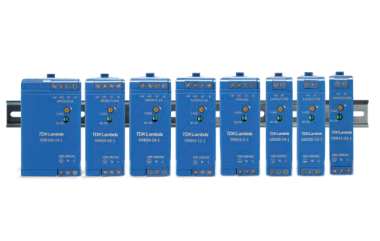

A DIN rail power supply is a power module designed specifically for installation on DIN rails, commonly used in industrial control systems, electrical equipment, and automation facilities. A DIN rail is a metal rail conforming to German standards, widely used in electrical cabinets and control panels. DIN rail power supplies typically convert AC power to DC power to supply energy to devices. Their compact, modular design enables them to provide efficient power in environments with limited space.
II. Working Principle
The working principle of a DIN rail power supply is based on switching power supply technology, which involves several steps:
· Input Rectification: The incoming AC power is first converted into DC power through a rectifier circuit and filtered to remove fluctuations using capacitors.
· High-Frequency Switching Conversion: The DC power is then converted into high-frequency pulse current through switching elements like MOSFETs, improving energy transmission efficiency and reducing energy loss.
· Voltage Conversion and Regulation: Transformers or switching regulators adjust the voltage to the desired level, and a voltage regulation circuit ensures a stable output voltage.
· Output Voltage Protection: Modern DIN rail power supplies integrate features such as overcurrent, overvoltage, and short circuit protection to ensure the power supply operates stably under varying load conditions.
III. Characteristics and Advantages
DIN rail power supplies offer several unique advantages, making them popular in industrial applications:
· High Efficiency: With an efficiency ratio of over 90%, they meet international energy efficiency standards such as ErP Lot 6, significantly reducing energy consumption.
· Wide Voltage Input: Supports wide input voltage ranges (85-264V AC), making them suitable for global power grid differences.
· Hot-Swap and Redundant Parallel Operation: Improves system reliability and reduces downtime.
· Compact Design: Available in single-phase, two-phase, and three-phase designs, saving installation space.
· Wide Operating Temperature Range: From -40°C to +70°C, suitable for extreme industrial environments.
· International Certifications: UL, CE, RoHS, and other certifications ensure safety and environmental friendliness.
· Integrated Communication Interfaces: Supports RS485, CAN, and other communication interfaces for remote monitoring and fault diagnosis.
IV. Applications
Due to their unique design and superior performance, DIN rail power supplies are widely used across various industries, including but not limited to:
· Industrial Control Systems: Powering PLCs, industrial robots, CNC machines, etc., with the industrial control sector expected to account for over 50% of demand by 2025.
· Electrical Cabinets and Control Boxes: Power management for high-density equipment installation and easy maintenance.
· Renewable Energy Systems: Efficient power conversion and regulation in solar and wind energy systems, helping businesses reduce energy consumption and improve energy efficiency.
· Rail Transport: Designed to meet the specific needs of rail transport equipment, DIN rail power supplies undergo rigorous testing (such as EN 50155, EN 61373 standards) to ensure safe operation under high vibration, extreme temperatures, and other harsh conditions.
V. Conclusion
DIN rail power supplies, with their compact, efficient, standardized design and multiple protection features, have become an indispensable part of modern electronic components and industrial automation systems. Whether in industrial automation, energy management, or rail transport applications, DIN rail power supplies provide stable and reliable power support. As technology continues to advance and market demand expands, DIN rail power supplies are poised for even broader development in the global market, becoming a key force in driving smart manufacturing and green energy solutions.
