LCMXO2-640HC-4TG100C: Features, Specs & More
In the world of electronic components, the Lattice Semiconductor LCMXO2-640HC-4TG100C FPGA stands out as a versatile and cost-effective solution for various applications. This device, part of the MachXO2 family, is built using 65nm technology and offers 640 logic cells, making it ideal for low-power and space-constrained designs. In this comprehensive article, we'll delve into the intricacies of the LCMXO2-640HC-4TG100C, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
LCMXO2-640HC-4TG100C's Overview
LCMXO2-640HC-4TG100C's Manufacturer
LCMXO2-640HC-4TG100C's Overview

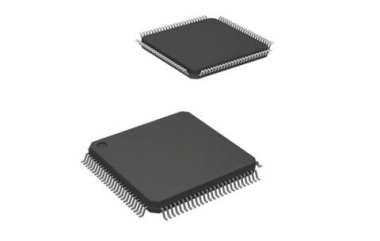

The LCMXO2-640HC-4TG100C is part of the MachXO2 series, designed to cater to high-density logic applications. This FPGA integrates 640 logic elements, offering users flexibility and reprogrammability for their design needs. Manufactured with advanced 65nm process technology, it operates on a voltage range of 2.5V to 3.3V, making it suitable for low-power, compact designs. With a 100-pin TQFP (Thin Quad Flat Package), the LCMXO2-640HC is perfect for surface-mount applications where space efficiency is key.
Key Features
Let's delve into the standout features that make the LCMXO2-640HC-4TG100C a standout in the world of electronics:
· It operates efficiently within a voltage range of 2.5V to 3.3V, with a minimum supply voltage of 2.375V.
· With 640 logic units, this FPGA provides ample resources for complex logic design without sacrificing performance or efficiency.
· The LCMXO2-640HC offers 78 user I/Os distributed across 4 I/O banks, providing ample flexibility for various input/output configurations.
· With 18 Kbits of embedded memory and 2 Block RAMs, this FPGA is well-suited for applications requiring substantial internal memory.
· The speed grade of 4 and a maximum operating temperature of 85°C ensure the device delivers stable performance in various environments.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the LCMXO2-640HC-4TG100C:
Type | Parameter |
Family Name | MachXO2 |
Process Technology | 65nm |
User I/Os | 78 |
Number of I/O Banks | 4 |
Operating Supply Voltage (V) | 2.5|3.3 |
Shift Registers | Utilize Memory |
Logic Elements | 640 |
Program Memory Type | SRAM |
Embedded Memory (Kbit) | 18 |
Total Number of Block RAM | 2 |
Maximum Distributed RAM Bits | 5120 |
Device Logic Units | 640 |
Reprogrammability Support | No |
In-System Programmability | No |
Speed Grade | 4 |
Maximum Differential I/O Pairs | 39 |
Minimum Operating Supply Voltage (V) | 2.375 |
Maximum Operating Supply Voltage (V) | 3.6 |
I/O Voltage (V) | 1.8|2.5|3.3|1.2|1.5 |
Minimum Operating Temperature (°C) | 0 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Commercial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 14 |
Package Length | 14 |
PCB changed | 100 |
Standard Package Name | QFP |
Supplier Package | TQFP |
Pin Count | 100 |
Lead Shape | Gull-wing |
* LCMXO2-640HC-4TG100C's Datasheet
Applications
The LCMXO2-640HC-4TG100C is highly versatile and used in a variety of applications that require a balance of power, size, and flexibility. Here are some of the key areas where it excels:
· Embedded Systems: Ideal for embedded applications requiring reliable performance in small, power-efficient packages, such as consumer electronics, medical devices, and automotive systems.
· Industrial Control: The device's rugged specifications, including its wide operating temperature range, make it suitable for industrial applications, including factory automation and robotics.
· Communications Equipment: It is perfect for managing complex data and control signals in communication devices, offering flexibility in both I/O configuration and memory usage.
· Consumer Electronics: With its compact package and efficient power consumption, the LCMXO2-640HC is ideal for applications like audio/video systems, home automation, and gaming devices.
LCMXO2-640HC-4TG100C's Manufacturer
Lattice Semiconductor Corporation was founded in 1983 and went public in 1989. It is an American semiconductor company specializing in the design and manufacturing of low power field-programmable gate arrays (FPGAs). They solve customer problems across the network, from the Edge to the Cloud, in the growing communications, computing, industrial, automotive and consumer markets.
Conclusion
The Lattice Semiconductor LCMXO2-640HC-4TG100C FPGA offers a comprehensive solution for engineers looking to develop power-efficient, high-performance systems. With 640 logic elements, flexible I/O options, and advanced embedded memory features, it delivers both versatility and reliability across a range of industries.
