STR751FR0T6: Features, Specs & More
In the world of embedded systems, the STMicroelectronics STR751FR0T6 stands out as a reliable, high-performance microcontroller (MCU) that brings advanced features for a variety of applications. With its ARM7TDMI-S core and rich set of peripherals, this MCU is an excellent choice for engineers seeking a versatile and efficient solution. In this comprehensive article, we'll delve into the intricacies of the STR751FR0T6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
STR751FR0T6's Overview
The STR751FR0T6 is a 32-bit ARM7TDMI-S RISC microcontroller from STMicroelectronics, designed for use in a wide range of embedded system applications. Its ARM architecture offers efficient processing power, and its rich set of interfaces makes it suitable for diverse industrial and consumer electronics projects. The MCU's 64KB Flash memory, 16KB RAM, and integrated CAN controller provide the performance required for real-time and data-intensive applications.
Key Features
Let's delve into the standout features that make the STR751FR0T6 a standout in the world of electronics:
· The STR751FR0T6 features the ARM7TDMI-S core, known for its excellent balance between power consumption and processing speed.
· With a clock speed of up to 60 MHz, this MCU offers solid performance for a range of embedded applications.
· Equipped with 64KB Flash memory and 16KB RAM, the STR751FR0T6 provides ample space for code storage and data processing.
· The maximum expanded memory size of 4GB ensures scalability for more demanding applications.
· This MCU comes with a variety of interfaces, including CAN, I2C, SPI, and USB, making it highly adaptable to different system requirements.
· The STR751FR0T6 supports 38 I/O pins and features 1 ADC with 11 channels and 10-bit resolution for efficient analog-to-digital conversion.
· With a minimum operating voltage of 2.97V and typical operating voltage at 3.3V, this MCU is designed for power-efficient operation.
· Its maximum power dissipation is 444 mW, helping to keep energy costs low in battery-powered applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STR751FR0T6:
Type | Parameter |
Family Name | STR7 |
Instruction Set Architecture | RISC |
Device Core | ARM7TDMI-S |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 60 |
Maximum Clock Rate (MHz) | 60 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 64KB |
RAM Size | 16KB |
Maximum Expanded Memory Size | 4GB |
Programmability | Yes |
Interface Type | CAN/I2C/SPI/SSI/SSP/USB |
Number of I/Os | 38 |
No. of Timers | 6 |
PWM | 1 |
Number of ADCs | 1 |
ADC Channels | 11 |
ADC Resolution (bit) | 10 |
USART | 0 |
UART | 0 |
USB | 1 |
SPI | 1 |
I2C | 1 |
I2S | 0 |
CAN | 1 |
Ethernet | 0 |
Watchdog | 1 |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2.97 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 5.5|3.6 |
Maximum Power Dissipation (mW) | 444 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 10 |
Package Length | 10 |
PCB changed | 64 |

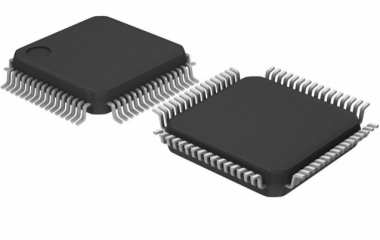

Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 64 |
Lead Shape | Gull-wing |
Applications
The versatility of the STMicroelectronics STR751FR0T6 makes it an ideal choice for a wide variety of applications, including:
· Industrial Automation: Its CAN controller and wide range of communication interfaces make the STR751FR0T6 perfect for industrial control systems, robotics, and machinery monitoring.
· Automotive: With CAN support, this MCU is often used in automotive systems, particularly for in-vehicle networking and control.
· Consumer Electronics: Thanks to its USB interface and PWM functionality, this MCU is suitable for consumer products that require real-time control and data exchange, such as smart home devices.
· Medical Devices: Its low power consumption and reliable performance make it a good fit for portable medical devices where energy efficiency is critical.
STR751FR0T6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STMicroelectronics STR751FR0T6 is a highly capable microcontroller, offering a balance of performance, power efficiency, and versatility. Its ARM7TDMI-S core, ample memory, and broad set of communication interfaces make it an excellent choice for applications ranging from industrial automation to automotive systems.
