What Are IDC Connectors?
In today's electronic devices and systems, connectivity technology plays a critical role. IDC connectors, short for Insulation Displacement Connectors, have become a well-established solution due to their efficiency, reliability, and low cost. Widely used across data communications, consumer electronics, industrial automation, and automotive electronics, IDC connectors offer a versatile connection method. This article provides a comprehensive overview of IDC connectors, including their definition, working principle, key features, advantages, and applications.
Catalog
III. Key Features and Advantages
I. What Are IDC Connectors?

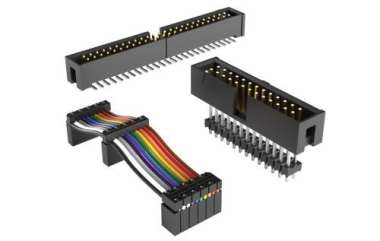

IDC connectors (Insulation Displacement Connectors) are electronic components that use crimping technology to establish a direct electrical connection between a cable and a terminal without stripping the insulation. Unlike traditional wiring methods, IDC connectors use sharp conductive metal blades to pierce through the insulation layer and make contact with the conductor inside. This not only speeds up the connection process but also reduces the chances of poor contact caused by manual handling.
II. Work Principles
The core of IDC technology lies in its V-shaped or U-shaped metal contacts. When pressure is applied using a specialized crimping tool, the sharp edges of the contact penetrate the wire's insulation and form a secure connection with the copper conductor inside. This process produces two key results:
· Airtight Electrical Contact: The metal blade scrapes away the oxide layer on the conductor, creating a stable, low-impedance, and corrosion-resistant electrical path.
· Mechanical Locking: The insulation is compressed into the contact groove, offering vibration resistance and pull-out protection.
Thanks to this principle, IDC connectors can establish multiple connections in just seconds, significantly enhancing production efficiency.
III. Key Features and Advantages
As a mature connectivity solution, IDC connectors boast several advantages that make them suitable for a wide range of applications:
· High-Density Design: Supports over 50 pins per row, ideal for compact layouts in miniaturized devices.
· Solder-Free Process: Eliminates heat-related stress and is compatible with automated assembly lines.
· High Reliability: Withstands vibration levels of over 5G and maintains contact resistance below 20mΩ.
· Cost-Effective: Reduces labor and equipment costs; failure rates are up to 70% lower than soldered connections.
· Versatility: Compatible with ribbon cables, single-core wires, and supports wire gauges from 0.1mm² to 0.5mm².
IV. Applications
Thanks to these advantages, IDC connectors are widely used in various industries, including:
· Telecommunications: Internal cabling for fiber modules and routers.
· Computers and Storage: SATA hard drive interfaces and motherboard power connections.
· Medical Electronics: Sensor connections in monitors and portable diagnostic devices.
· Automotive Electronics: ECU units and in-vehicle display signal transmission.
· Industrial Automation: PLC controllers and wiring for servo motors in robotics.
V. Conclusion
As a highly efficient, cost-effective, and reliable connection technology, IDC connectors hold a vital position in the electronics component landscape. Their insulation-piercing design, compatibility with mass automation, broad application scope, and continuous innovation make IDC connectors a standout solution. Looking ahead, as technology continues to advance and market demands grow, IDC connectors are poised to evolve with smarter, greener, and more modular features—providing strong technical support for the future of the electronics industry.
