GRM1555C1H101FA01D: Features, Specs & More

In the ever-evolving world of electronics, high-quality components are essential for building reliable and efficient devices. Among these components, capacitors play a crucial role in managing electrical signals. The MuRata GRM1555C1H101FA01D is a prime example of an advanced surface-mount ceramic capacitor designed to meet the needs of modern electronic circuits. In this comprehensive article, we'll delve into the intricacies of the GRM1555C1H101FA01D, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.

Catalog

GRM1555C1H101FA01D's Overview

Key Features

Specifications

Applications

GRM1555C1H101FA01D's Manufacturer

Conclusion

GRM1555C1H101FA01D's Overview

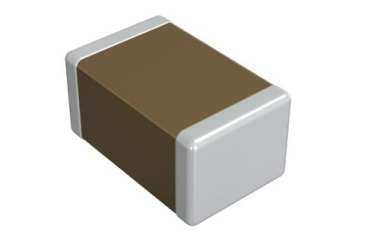

The MuRata GRM1555C1H101FA01D is a 100pF (picofarad) surface-mount ceramic capacitor designed for high reliability and precision. It features a C0G (Class I) dielectric, offering stable temperature and voltage characteristics. This SMD (Surface-Mount Device) component is compact and highly durable, with a maximum operating temperature of 125°C and a minimum operating temperature of -55°C. The capacitor's low tolerance of 1% makes it ideal for circuits requiring high accuracy.

Key Features

Let's delve into the standout features that make the GRM1555C1H101FA01D a standout in the world of electronics:

· This is the capacitor's primary rating, determining its ability to store electrical charge. The 100pF capacitance is suitable for high-frequency applications.

· The C0G (Class I) dielectric provides excellent temperature stability and minimal change in capacitance.

· With a tolerance of just 1%, this capacitor ensures that the capacitance stays very close to its nominal value, offering predictable and stable performance.

· The 50VDC voltage rating ensures that the capacitor can handle a wide range of voltages, offering flexibility in its use across various circuits.

· The 0402 package size (1mm x 0.5mm) makes it ideal for space-constrained designs, commonly used in high-density applications like mobile devices and wearable electronics.

· This capacitor can operate effectively between -55°C and 125°C, making it suitable for harsh environments where temperature fluctuations are common.

Specifications

Now, let's take a closer look at the technical specifications that define the capabilities of the GRM1555C1H101FA01D:

 * GRM1555C1H101FA01D's Datasheet

Applications

The MuRata GRM1555C1H101FA01D capacitor is designed for a wide range of applications where high stability and precision are required. Some of its key uses include:

· Mobile Electronics: Its small size and stability make it ideal for use in smartphones, tablets, and wearables, where space and performance are critical.

· Consumer Electronics: The capacitor is perfect for a variety of consumer electronics, including audio systems, TVs, and other devices that require high precision in their signal processing circuits.

· Automotive Electronics: Due to its wide temperature range and high reliability, the GRM1555C1H101FA01D is suitable for automotive applications, including engine control units (ECUs) and sensors.

· Industrial Equipment: In industrial applications, this capacitor helps in stabilizing power supplies and ensuring reliable performance in rugged environments.

GRM1555C1H101FA01D's Manufacturer

Founded in 1944, Murata Manufacturing Co., Ltd is a Japanese manufacturer of electronic components, based in Nagaokakyo, Kyoto. It produces ceramic passive electronic components, primarily capacitors, and has a majority marketshare worldwide in ceramic filters, high-frequency parts, and sensors.

Conclusion

The MuRata GRM1555C1H101FA01D is a standout choice for engineers and designers looking for a high-performance capacitor that offers precision, stability, and compact size. With its 1% tolerance, C0G dielectric, and wide temperature range, this capacitor meets the demanding requirements of modern electronic circuits.
