FM25040B-GTR: Features, Specs & More
The Infineon FM25040B-GTR is a cutting-edge 4Kbit Ferroelectric RAM (FRAM) designed to meet the stringent requirements of automotive and industrial applications. With its Serial-SPI interface, this device offers a reliable, low-power solution for data storage in environments where high reliability and fast access are paramount. In this comprehensive article, we'll delve into the intricacies of the FM25040B-GTR, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
FM25040B-GTR's Overview
The FM25040B-GTR is part of Infineon's innovative FRAM product line, a type of non-volatile memory that combines the speed of SRAM with the permanence of EEPROM. This particular device features a 4Kbit density organized in 512x8 bits, which is perfect for applications where data must be stored safely without the need for frequent write cycles. Unlike traditional flash memory, FRAM offers virtually unlimited write endurance, making it ideal for applications requiring constant updates or harsh environments.
Key Features
Let's delve into the standout features that make the FM25040B-GTR a standout in the world of electronics:
· 4Kbit Density: Provides adequate storage for smaller datasets, offering the perfect balance between capacity and performance.
· Serial-SPI Interface: A fast and efficient interface that ensures quick data access, ideal for real-time applications.
· Operating Voltage: Works within a range of 4.5V to 5.5V, ensuring compatibility with various systems.
· Temperature Range: The device can function between -40°C and 85°C, making it suitable for automotive and industrial environments.
· Low Power Consumption: With a typical operating current of just 4mA, the FM25040B-GTR is highly energy-efficient.
· AEC-Q100 Compliant: Designed to meet automotive quality standards, ensuring reliability in automotive applications.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the FM25040B-GTR:
Type | Parameter |
PPAP | Unknown |
Chip Density (bit) | 4K |
Density Range (bit) | 1K to 256K |
Organization | 512x8 |
Data Bus Width (bit) | 8 |
Max. Access Time (ns) | 20 |
Interface Type | Serial-SPI |
Minimum Operating Supply Voltage (V) | 4.5 |
Typical Operating Supply Voltage (V) | 5 |
Maximum Operating Supply Voltage (V) | 5.5 |
Operating Current (mA) | 4 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tape and Reel |
Mounting | Surface Mount |
Package Height | 1.5(Max) |
Package Width | 3.9 |
Package Length | 4.9 |
PCB changed | 8 |

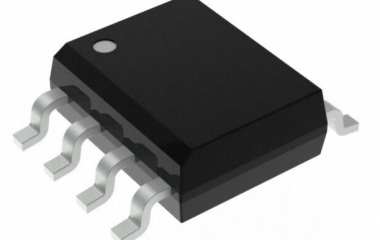

Standard Package Name | SO |
Supplier Package | SOIC |
Pin Count | 8 |
Lead Shape | Gull-wing |
Applications
The Infineon FM25040B-GTR is versatile and finds applications across several high-reliability sectors, including:
· Automotive Systems: As an automotive-grade FRAM, it meets AEC-Q100 requirements, making it ideal for data storage in automotive electronics such as ECUs (Electronic Control Units), sensors, and safety systems.
· Industrial Equipment: Its ability to withstand industrial temperatures and provide non-volatile memory makes it perfect for factory automation, robotics, and other industrial control systems.
· Smart Metering: The FM25040B-GTR can be used for storing data in smart meters, ensuring real-time data logging and minimizing the risk of data loss.
· Consumer Electronics: Its low-power consumption and reliable data storage also make it suitable for consumer devices like smart home appliances and wearables.
FM25040B-GTR's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon FM25040B-GTR is a high-performance, reliable, and efficient FRAM solution for automotive and industrial applications. Its combination of fast access, low power consumption, and wide temperature range makes it an excellent choice for systems that demand durability and speed.
