Y16242K49900F9R: Features, Specs & More
In the world of precision electronics, every component plays a crucial role in maintaining the efficiency and reliability of devices. One such component is the VPG Foil Y16242K49900F9R, a metal foil resistor that stands out due to its exceptional accuracy and stability. In this comprehensive article, we'll delve into the intricacies of the Y16242K49900F9R, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
Y16242K49900F9R's Manufacturer
Y16242K49900F9R's Overview

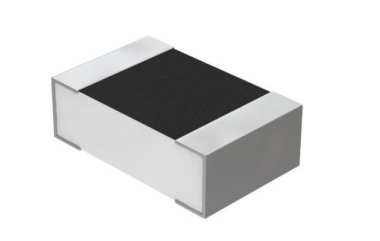

The VPG Foil Y16242K49900F9R is a metal foil resistor designed for applications requiring precision and stability. With a resistance value of 2.499K Ohms and a tolerance of just 1%, this resistor ensures that circuits perform optimally, even in the most demanding environments. Unlike traditional resistors, metal foil resistors like this one are known for their low temperature coefficient and superior reliability.
Key Features
Let's delve into the standout features that make the Y16242K49900F9R a standout in the world of electronics:
· With a resistance value of 2.499K Ohms and a tolerance of just 1%, this resistor provides highly accurate resistance for your circuits.
· The Y16242K49900F9R offers an outstanding temperature coefficient of ±0.2ppm/°C, ensuring consistent performance across a wide range of temperatures.
· Its 0805 package size (2.03mm x 1.27mm) makes it a suitable choice for space-constrained applications.
· With a power rating of 0.2W (1/5W), it can handle moderate power dissipation without sacrificing performance.
· This resistor operates effectively in temperatures ranging from -55°C to 150°C, with a derated power range between 70°C and 150°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the Y16242K49900F9R:
Type | Parameter |
Resistance Value (Ohm) | 2.499K |
Tolerance | 1% |
Maximum Voltage Rating (V) | 40 |
Current Sensing | No |
Power Rating (W) | 0.2 (1/5) |
Technology | Metal Foil |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 150 |
Temperature Coefficient (ppm/°C) | ±0.2 |
Temperature Range @ Derated Power (°C) | 70 to 150 |
Fail Safe Fusible Resistor | No |
Anti-Surge | No |
Anti-Sulfurated | No |
Case Style | Epoxy Resin |
Case Size | 0805 |
Termination Style | Pad |
Number of Terminals | 2 |
Package Type | SMD |
Package Shape | Rectangular |
Package/Case | 0805 |
Product Length (mm) | 2.03 |
Product Depth (mm) | 1.27 |
Product Height (mm) | 0.64 |
Product Weight (g) | 0.006 |
Mounting | Surface Mount |
Applications
The Y16242K49900F9R is ideal for a wide range of high-performance applications. Some common uses include:
· Precision Measurement Equipment: Due to its high precision and low tolerance, this resistor is well-suited for use in measurement systems that demand accurate resistance values.
· Medical Devices: The resistor's stability over a wide temperature range makes it a reliable component for medical electronics, where precision and durability are paramount.
· Industrial Control Systems: In industrial automation and control systems, this resistor ensures consistent performance in demanding environments.
· Consumer Electronics: Its small size and high reliability make it an excellent choice for consumer electronics, including audio equipment and portable devices.
Y16242K49900F9R's Manufacturer
VPG Foil is a product brand of Vishay Precision Group (VPG), producing the most precise and stable resistors available. VPG is an NYSE company that was a recent spin-off from Vishay Intertechnology, Inc. Their product portfolio includes discrete resistors and resistor networks in surface mount and through-hole (fixed-lead) configurations, customized chip resistor networks, precision trimming potentiometers, and discrete chips for use in hybrid circuits.
Conclusion
The VPG Foil Y16242K49900F9R resistor is a highly reliable and precise component, perfect for applications that demand accuracy and stability across a wide temperature range. With its compact size, excellent temperature coefficient, and impressive resistance tolerance, this resistor is an ideal choice for professionals seeking high-performance components for precision circuits.
