What Are DVI Connectors?
DVI (Digital Visual Interface) connectors are commonly used video transmission interfaces in modern electronic devices, widely applied for connecting computer graphics cards to display devices such as monitors and projectors. Since its creation by the Digital Display Working Group (DDWG) in 1999, DVI connectors have gained popularity in many professional fields due to their high-quality digital video transmission, strong compatibility, and stable transmission performance. In this article, we will explore the definition, types, working principle, characteristics, advantages, and applications of DVI connectors.
Catalog
IV. Characteristics and Advantages

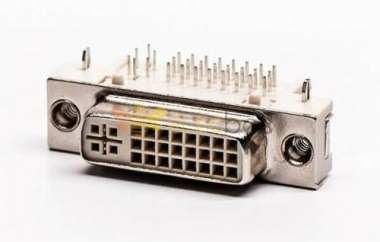

I. What are DVI Connectors?
DVI, which stands for Digital Visual Interface, is an industry-standard interface used for transmitting video signals, supporting both digital and analog signal transmission, either separately or in combination. It is primarily used to connect computer graphics cards to display devices such as monitors and projectors. DVI is popular for delivering high-quality image resolution via digital signal transmission, while also being backward compatible with VGA, making it a versatile option.
II. Types of DVI Connectors
DVI connectors come in three main types:
· DVI-A (Analog Only): DVI-A only transmits analog signals and can be used with an adapter to connect to VGA devices. It is commonly used to connect older monitors.
· DVI-D (Digital Only): DVI-D transmits only digital signals and comes in two versions: single-link (18 pins + 1 connector) and dual-link (24 pins + 1 connector). It supports resolutions up to 2560×1600.
· DVI-I (Digital + Analog): DVI-I combines both digital (DVI-D) and analog (DVI-A) signals. The mode can be selected through an adapter for digital or analog transmission. It uses 23 pins in single-link mode (18+5) and 29 pins in dual-link mode (24+5).
III. Working Principles
DVI connectors use TMDS (Transition Minimized Differential Signaling) technology to transmit digital signals. TMDS reduces electromagnetic interference by transmitting video data in a differential signal format, improving the stability and clarity of the signal. The bandwidth of DVI connectors can be expanded through single-link and dual-link modes. In dual-link mode, the signal transmission speed and resolution are significantly enhanced, making it suitable for high-end display requirements.
IV. Characteristics and Advantages
· Digital signal transmission provides more accurate, distortion-free image quality, significantly improving display performance.
· DVI supports VGA compatibility, enabling a smooth transition between new and old devices, which reduces upgrade costs.
· The high bandwidth in dual-link mode meets the demands of professional graphics processing and high-definition video editing.
· The interface design is well-established and provides stable physical connections, making it suitable for use in environments with strict stability requirements, such as industrial and medical applications.
· DVI does not support audio transmission, requiring additional audio cables for sound. Additionally, the connector's larger size may not be ideal for ultra-thin, portable devices.
V. Applications
DVI connectors have a wide range of applications in various fields:
· DVI has been a standard connection method for desktop graphics cards and LCD monitors, previously a mainstream solution for PC video output.
· Many projectors, workstations, and professional graphics cards widely adopt DVI connectors to ensure high-definition image quality.
· Due to the high stability and compatibility requirements for video signals, DVI maintains a market share in these fields, where precise video transmission is essential.
· Portable converters and adapters commonly use DVI connectors in the aftermarket, meeting the compatibility needs between various devices.
VI. Conclusion
As a mature video transmission standard, DVI connectors have provided high-quality video signal transmission solutions for numerous electronic devices over the past few decades. Although their use in consumer electronics has decreased, DVI connectors still hold an important position in professional fields, particularly in applications requiring high resolution and stability. With the continuous development of new technologies, the market share of DVI connectors may change, but their reliability and compatibility ensure that DVI will remain an essential interface in many scenarios in the future.
