STM32F103ZGT6: Features, Specs & More
When it comes to reliable and high-performance microcontroller units (MCUs), the STM32F103ZGT6 stands out in the embedded systems market. As part of STMicroelectronics' STM32F family, the STM32F103ZGT6 combines robust computing power with versatile connectivity options, making it an ideal choice for a variety of applications. In this comprehensive article, we'll delve into the intricacies of the STM32F103ZGT6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog

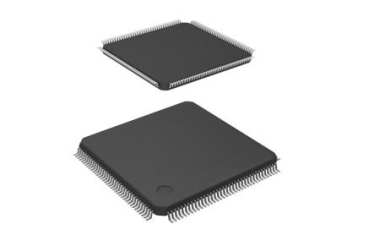

STM32F103ZGT6's Overview
The STM32F103ZGT6 belongs to the STM32F family, which is well-regarded for integrating ARM Cortex M3 cores into cost-effective microcontrollers. RISC-based architecture ensures high processing power while maintaining low energy consumption. This MCU boasts a maximum clock speed of 72 MHz, allowing it to execute operations swiftly and efficiently. With a range of communication interfaces and I/O capabilities, it is versatile enough to power embedded systems across industries.
Key Features
Let's delve into the standout features that make the STM32F103ZGT6 a standout in the world of electronics:
· The ARM Cortex-M3 core ensures optimal performance with a maximum clock speed of 72 MHz.
· With 1MB of Flash memory and 96KB of RAM, the STM32F103ZGT6 offers substantial memory for data storage and processing.
· The microcontroller supports a wide variety of interfaces, including CAN, I2C, SPI, USART, and USB.
· The STM32F103ZGT6 comes equipped with 3 ADCs (12-bit resolution), 2 DACs (12-bit resolution), and 14 timers.
· The operating supply voltage ranges from 2V to 3.6V, making it adaptable to different system power requirements.
· This MCU is designed for industrial-grade applications, with an operating temperature range from -40°C to 85°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32F103ZGT6:
Type | Parameter |
Family Name | STM32F |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M3 |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 72 |
Maximum Clock Rate (MHz) | 72 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 1MB |
RAM Size | 96KB |
Programmability | Yes |
Interface Type | CAN/I2C/I2S/SPI/USART/USB |
Number of I/Os | 112 |
No. of Timers | 14 |
PWM | 2 |
Number of ADCs | 3 |
ADC Channels | 21/21/21 |
ADC Resolution (bit) | 12/12/12 |
Number of DACs | 2 |
DAC Channels | 2/2 |
DAC Resolution (bit) | 12/12 |
USART | 5 |
UART | 0 |
USB | 1 |
SPI | 3 |
I2C | 2 |
I2S | 2 |
CAN | 1 |
Ethernet | 0 |
Watchdog | 2 |
Special Features | CAN Controller |
Minimum Operating Supply Voltage (V) | 2 |
Typical Operating Supply Voltage (V) | 2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Maximum Power Dissipation (mW) | 666 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 20 |
Package Length | 20 |
PCB changed | 144 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 144 |
Lead Shape | Gull-wing |
Applications
The STM32F103ZGT6 is ideal for a wide range of applications due to its robust features and versatility:
· Industrial Automation: With its multiple communication interfaces and analog capabilities, it is widely used in industrial control systems, sensors, and actuators.
· Consumer Electronics: Its low power consumption and performance make it an excellent choice for smart devices, home appliances, and wearable tech.
· Automotive Systems: The MCU’s wide operating temperature range and robust design make it suitable for automotive electronics such as infotainment systems and vehicle control units.
· Medical Equipment: Its precision ADCs and reliability allow it to be used in medical instrumentation like diagnostic equipment.
STM32F103ZGT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STM32F103ZGT6 is an exceptional 32-bit microcontroller offering a powerful combination of performance, flexibility, and energy efficiency. Its wide range of interfaces, high-performance core, and ample memory make it suitable for demanding applications across various industries.
