What Are Audio Connectors?
Audio connectors play a crucial role in the electronic components industry, ensuring the quality of signal transmission between audio devices. With continuous advancements in audio technology, the types, performance, and application fields of audio connectors are constantly expanding. This article provides a comprehensive introduction to the definition, types, working principles, characteristics, advantages, and applications of audio connectors.
Catalog
IV. Characteristics and Advantages
I. What Are Audio Connectors?
Audio connectors are electrical or optical connectors used to transmit analog or digital audio signals, facilitating modular connections and hot-swapping capabilities between devices through plugs and sockets. Among them, the phone jack (such as the 3.5mm headphone jack) is one of the earliest and most widely used types of audio connectors, with a basic structure comprising a metal plug and an insulating sleeve for transmitting unbalanced analog signals.
II. Types
· XLR Connectors: With a three-pin circular design, XLR connectors support balanced audio signal transmission, effectively suppressing electromagnetic interference. They are commonly used to connect microphones with professional audio equipment.
· TS/TRS Connectors (1/4 inch): TS (Tip-Sleeve) connectors are used for mono unbalanced signals, while TRS (Tip-Ring-Sleeve) connectors are used for stereo or balanced signals. These connectors are widely used in instruments, mixing consoles, and headphone interfaces.
· RCA (Phono) Connectors: A dual-core unbalanced interface, RCA connectors are popular in home theater systems, CD players, and turntables due to their low cost and ease of use.
· Speakon Connectors: Developed by Neutrik, Speakon connectors feature a locking mechanism and are designed to handle high current. They are primarily used in stage audio systems and professional speaker setups.

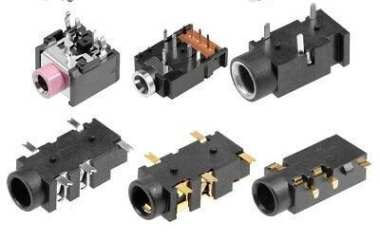

· 3.5mm Mini Jacks: The most common unbalanced analog interface in consumer electronics, 3.5mm jacks are found in devices such as smartphones, tablets, and laptops, offering convenient audio connectivity.
· USB Audio Interfaces: Including USB-A, USB-C, and MIDI standards, USB connectors can directly transmit digital audio data. With the rise of digital audio, they have become increasingly common in professional recording and live streaming setups.
· Optical (TOSLINK) Connectors: Optical connectors transmit digital audio signals using light pulses, offering zero electromagnetic interference. They are commonly found in home theater and high-fidelity audio equipment.
III. Working Principles
Analog audio connectors rely on metal contacts to conduct current. Common balanced connectors, like XLR, use two signal lines and one ground line, employing differential signal technology to cancel out common-mode interference and improve signal purity over long distances. Unbalanced connectors, such as RCA and 3.5mm jacks, use one signal line and one ground line, making them more suitable for short-distance applications but susceptible to external noise. Digital audio interfaces, like USB and optical connectors, use digital signal encoding and decoding, employing clock synchronization and error correction to ensure high-fidelity audio transmission.
IV. Characteristics and Advantages
· Strong Anti-interference: Balanced connections (XLR, TRS) significantly reduce EMI interference through differential transmission, ensuring a high signal-to-noise ratio.
· High Current Capacity: Speakon connectors, with their locking design and large contact surface, are ideal for connecting high-power stage speakers.
· Cost-effective: RCA connectors are low-cost, simple to manufacture, and easy to maintain, making them the standard choice for home audio systems.
· Compact Size: The small size of 3.5mm jacks makes them easy to integrate into portable devices. However, their signal wire diameter is limited, making them suitable for short-distance monitoring.
· Digital and Multifunctional: USB connectors can transmit digital audio without the need for an external sound card, and they also support MIDI control signals, catering to professional recording needs.
V. Applications
· The 3.5mm jack is a mainstream audio output interface used in devices like smartphones, tablets, and laptops.
· XLR and Speakon connectors are the standard interfaces for connecting microphones and speakers, ensuring stable audio quality over long-distance transmission.
· RCA connectors remain a key option for analog audio transmission, especially in turntables and entry-level audio systems.
· With the development of smart cockpits and in-car entertainment systems, audio connectors must withstand high temperatures and vibrations.
VI. Conclusion
Audio connectors are indispensable components in the electronic components industry, providing essential support for the proper functioning of audio devices with their excellent design and reliable performance. Whether in home entertainment, music production, or live performances, audio connectors play a critical role. As technology continues to evolve, the variety and application scenarios of audio connectors will keep expanding, offering more possibilities to enhance the future of audio experiences.
