CY62146EV30LL-45BVXI: Features, Specs & More
In the world of electronics, reliable and efficient memory chips are the backbone of high-performance devices. The Infineon CY62146EV30LL-45BVXI is an exceptional SRAM chip that delivers impressive performance for various industrial applications. With a focus on low power consumption and fast data access, this chip stands out for its versatility and reliability in critical systems. In this comprehensive article, we'll delve into the intricacies of the CY62146EV30LL-45BVXI, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
CY62146EV30LL-45BVXI's Overview
CY62146EV30LL-45BVXI's Manufacturer
CY62146EV30LL-45BVXI's Overview

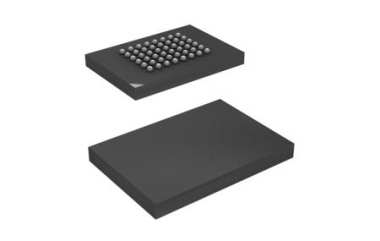

The CY62146EV30LL-45BVXI is a static random-access memory (SRAM) chip from Infineon, designed to operate with a 2.5V to 3.6V supply voltage. It offers 4M-bit density organized in 256K x 16 bits, making it suitable for various high-speed applications requiring low-latency data access. Its asynchronous operation ensures quick and efficient read/write cycles, which are crucial for systems demanding reliability and speed. The chip's compact 48-pin VFBGA package design also enables efficient integration into space-constrained devices.
Key Features
Let's delve into the standout features that make the CY62146EV30LL-45BVXI a standout in the world of electronics:
· The chip provides 4M-bit memory with a structure of 256K words x 16 bits, offering a balanced memory solution for many applications.
· With a 45ns maximum access time, the CY62146EV30LL-45BVXI ensures fast data retrieval, ideal for real-time systems.
· Operating at a 2.5V to 3.3V typical supply voltage, this chip offers low power consumption, critical for energy-efficient systems.
· The chip is designed for industrial-grade applications, with a temperature range from -40°C to 85°C, ensuring reliable operation in harsh environments.
· The SDR (Single Data Rate) architecture supports high-speed data transfer, crucial for systems that demand quick memory access.
· With a 48-pin VFBGA packaging, it allows for efficient mounting on surface-mount PCBs.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the CY62146EV30LL-45BVXI:
Type | Parameter |
Chip Density (bit) | 4M |
Number of Words | 256K |
Number of Bits/Word (bit) | 16 |
Data Rate Architecture | SDR |
Address Bus Width (bit) | 18 |
Number of Ports | 1 |
Timing Type | Asynchronous |
Max. Access Time (ns) | 45 |
Process Technology | 90nm, CMOS |
Minimum Operating Supply Voltage (V) | 2.2 |
Typical Operating Supply Voltage (V) | 2.5|3|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Operating Current (mA) | 20 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 0.81(Max) mm |
Package Width | 6 mm |
Package Length | 8 mm |
PCB changed | 48 |
Standard Package Name | BGA |
Supplier Package | VFBGA |
Pin Count | 48 |
Lead Shape | Ball |
* CY62146EV30LL-45BVXI's Datasheet
Applications
The Infineon CY62146EV30LL-45BVXI is suitable for a variety of industrial and commercial applications, including:
· Industrial Controls: With its wide operating temperature range and low voltage operation, this chip is perfect for use in industrial equipment that needs reliable memory for control systems.
· Embedded Systems: Its small form factor and fast access time make it ideal for embedded systems that require efficient data access without power-draining refresh cycles.
· Networking Equipment: In routers, switches, and other networking hardware, this SRAM chip offers the speed needed for data processing and transmission.
· Consumer Electronics: High-speed memory requirements in consumer electronics such as printers, game consoles, and home automation devices are well served by this chip.
CY62146EV30LL-45BVXI's Manufacturer
Established in 1999, Infineon Technologies has emerged as a global leader in semiconductor solutions, pioneering innovations that power various industries worldwide. Headquartered in Neubiberg, Germany, the company has played a pivotal role in shaping the landscape of modern electronics. Infineon specializes in designing and manufacturing advanced semiconductor technologies, encompassing power management, automotive electronics, industrial applications, and security solutions.
Conclusion
The Infineon CY62146EV30LL-45BVXI SRAM chip offers a combination of speed, power efficiency, and reliability, making it an essential component for high-performance applications across multiple industries. With its low access time, broad voltage range, and industrial-grade temperature tolerance, this SRAM chip is designed to meet the demands of modern electronics, from industrial machinery to consumer devices. Infineon continues to be a trusted name in semiconductor solutions, and the CY62146EV30LL-45BVXI is yet another example of their excellence in creating advanced, reliable memory solutions.
