What Are SD Card Connectors?
In modern electronic devices, SD cards have become a widely used storage solution thanks to their small size, large capacity, and ease of insertion and removal. The SD card connector, used in conjunction with the SD card, serves as the vital link between the card and the device's mainboard or system. This connector plays an essential role in ensuring stable data transfer and secure physical connection. This article will delve into the definition, working principle, features and advantages, types, applications, and more regarding SD card connectors.
Catalog
I. What Are SD Card Connectors?
IV. Types of SD Card Connectors
I. What Are SD Card Connectors?

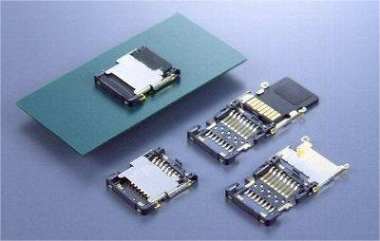

An SD card connector is a specialized connector designed to connect an SD card (Secure Digital Card) to the mainboard of electronic devices, ensuring safe data transmission and secure insertion of the card. It typically includes a slot, pins, a locking mechanism, and a mechanical structure, which work together to establish electrical contact between the SD card and the circuit board and physically secure the card. Depending on the use case, SD card connectors come in different sizes and mounting types, making them compatible with a wide range of consumer electronics and industrial devices.
II. Working Principle
The working principle of an SD card connector is quite simple. When the SD card is inserted, the metal contacts on the card connect with the pins of the connector, forming an electrical connection that ensures stable data transfer. During insertion and removal, the locking mechanism and slot help to secure the card and protect the interface, preventing poor contact or damage caused by improper handling. Furthermore, SD card connectors support hot-swapping, meaning users can insert and remove the card without powering down the device, greatly enhancing convenience.
III. Features and Advantages
· Compact Design, Space-saving: Available in standard SD and microSD sizes, the connector meets the internal space requirements of different devices.
· High-Speed Data Transfer: Supports UHS-I/II/III and SD Express protocols, achieving maximum speeds of 104 MB/s, 312 MB/s, 624 MB/s, and even faster PCIe/NVMe communication modes.
· High Reliability and Longevity: Common connectors can withstand over 10,000 insertion cycles and function reliably in temperatures ranging from −40 °C to 85 °C, meeting the stringent requirements of industrial and automotive sectors.
· Diverse Mounting Options: Surface Mount Technology (SMT), top/bottom mounting, push-pull, and push-push designs provide flexibility to adapt to automated production and diverse layout needs.
IV. Types of SD Card Connectors
SD card connectors can be categorized into several types based on different needs:
1. By Size
· Full-size (Standard SD): Traditional size, suitable for cameras, card readers, and similar devices.
· microSD: Smaller size, commonly found in smartphones, tablets, drones, and other portable devices.
2. By Mounting Type
· Surface Mount (SMT): Soldered to the PCB surface, ideal for automated production.
· Top/Bottom Mount: Inserted from the top or bottom of the PCB, offering flexibility to meet spatial layout requirements.
· TE Connectivity: Suitable for harsh environment connections and sensor solutions.
· Push-Push and Push-Pull: Cards are inserted or removed with a push action, enhancing user experience and security.
V. Applications
· SD card connectors serve as the main storage expansion interface for digital cameras, smartphones, tablets, and other devices, balancing performance and cost.
· These connectors require high vibration resistance, high-temperature tolerance, and the ability to handle continuous write cycles. Industrial-grade SD card connectors are typically chosen for such applications.
· Devices such as PLCs, industrial controllers, and IoT terminals require long-term stable operation, with connectors often featuring locking mechanisms and dust covers for added durability.
· For platforms like Arduino expansion boards and Raspberry Pi peripheral modules, stacked SD card connectors are commonly used to facilitate rapid development and multi-card interface expansion.
VI. Conclusion
As the functionality of electronic devices continues to evolve, SD card connectors are also advancing. With their compact size, reliability, strong compatibility, and high-speed data transfer capabilities, SD card connectors have become an indispensable component in many electronic products. From consumer electronics to industrial control and automotive systems, SD card connectors are providing flexible and efficient storage solutions across various industries.
