ENC424J600-I/ML: Features, Specs & More
In today's connected world, efficient and reliable networking is essential—even for compact embedded systems. The Microchip ENC424J600-I/ML answers that need with a robust, single-chip Ethernet controller that integrates seamlessly into a wide range of applications. In this comprehensive article, we'll delve into the intricacies of the ENC424J600-I/ML, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
ENC424J600-I/ML's Manufacturer
ENC424J600-I/ML's Overview
The ENC424J600-I/ML is a single-chip Ethernet controller developed by Microchip Technology. It supports 10BASE-T and 100BASE-TX network standards and communicates with the host microcontroller via an SPI interface. Designed for embedded applications, this controller provides full and half-duplex communication modes and meets IEEE 802.3 standards for Ethernet connectivity.
Key Features
Let's delve into the standout features that make the ENC424J600-I/ML a standout in the world of electronics:
· The ENC424J600-I/ML supports 10 Mbps and 100 Mbps Ethernet speeds.
· It offers full-duplex and half-duplex communication modes.
· The controller operates with a supply voltage range from 3V to 3.6V.
· An SPI host interface ensures easy integration with microcontrollers.
· The device supports MII and MIIM Ethernet interface types.
· It features internal loopback mode for testing and diagnostics.
· Direct Memory Access (DMA) support boosts data transfer efficiency.
· Auto-negotiation capability allows automatic network speed adjustment.

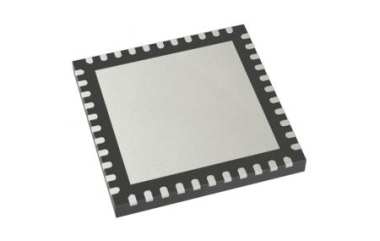

· The package is a compact 44-pin QFN with a low profile of 0.88mm.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ENC424J600-I/ML:
Type | Parameter |
Product Category | Single Chip |
Physical Network Type | 10BASE-T|100BASE-TX |
Ethernet Speed (MBps) | 10|100 |
Standard Supported | IEEE 802.3 |
Communication Mode | Full Duplex|Half Duplex |
Host Interface | SPI |
Ethernet Interface Type | MII|MIIM |
Minimum Operating Supply Voltage (V) | 3 |
Typical Operating Supply Voltage (V) | 3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Loopback Mode | Internal |
DMA Support | Yes |
Auto-Negotiation | Yes |
Packaging | Tube |
Mounting | Surface Mount |
Package Height | 0.88 |
Package Width | 8 |
Package Length | 8 |
PCB changed | 44 |
Standard Package Name | QFN |
Supplier Package | QFN EP |
Pin Count | 44 |
Lead Shape | No Lead |
Applications
The Microchip ENC424J600-I/ML is engineered for a wide range of applications where robust Ethernet connectivity is critical. Typical use cases include:
· Industrial control systems and automation equipment
· Smart IoT (Internet of Things) devices
· Energy management systems
· Remote monitoring and telemetry solutions
· Embedded networked systems in medical and security fields
· Home and building automation
ENC424J600-I/ML's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
The Microchip ENC424J600-I/ML is a feature-rich, space-saving Ethernet controller built for embedded networking. Its high-speed support, robust industrial-grade specifications, and simplified host interface make it a smart choice for engineers aiming to bring reliable Ethernet connectivity to their applications.
