What Are Battery Connectors?
In today's rapidly evolving electronics landscape, batteries serve as the primary power source across a wide range of sectors—consumer electronics, electric vehicles, medical devices, industrial systems, and renewable energy applications. Playing a vital but often overlooked role in these systems are battery connectors—the crucial components that establish the connection between batteries and devices. Battery connectors are more than just hardware; they directly impact power efficiency, operational safety, and the overall lifespan of the battery system. This article explores what battery connectors are, their types, working principles, key features, and common application scenarios.
Catalog
I. What Are Battery Connectors?
II. Common Types of Battery Connectors
I. What Are Battery Connectors?

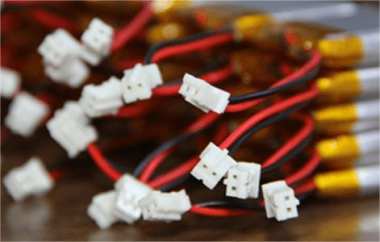

A battery connector is an electronic component designed to connect batteries to circuits, ensuring stable power transmission and signal communication between the power source and the main device. These connectors offer core functionalities such as pluggability, conductivity, mechanical stability, and insulation—ensuring both reliable performance and ease of maintenance.
Typical Structure:
· Metal Contacts: Conduct electricity (e.g., copper, gold-plated pins)
· Insulating Housing: Protects internal contacts and prevents short circuits
· Locking Mechanism: Ensures secure connection and prevents accidental disconnection
II. Common Types of Battery Connectors
Battery connectors come in various structural forms based on application requirements. The two most common types include:
· Spring Contacts: Utilize flexible metal strips that maintain continuous pressure for contact. Ideal for portable electronics with high insertion/extraction cycles.
· Blade Contacts: Feature rigid blade-like contacts that offer excellent current-carrying capacity. Widely used in power tools and industrial-grade systems.
III. Work Principles
Battery connectors form a low-impedance electrical pathway via metal contacts, transmitting DC power from the battery to the load or power management unit. When mated, physical pressure or spring force ensures firm electrical contact. Advanced connectors may also support:
· Real-time monitoring of parameters such as voltage and temperature
· Signal communication through protocols like I²C or CAN Bus
· This dual-purpose design ensures efficient power delivery while enhancing system safety and control.
IV. Key Features & Advantages
· Handles sustained currents from tens to hundreds of amps—ideal for EVs and energy storage systems.
· Minimizes energy loss and heat generation, improving both efficiency and safety.
· Rated for 10,000–50,000 mating cycles—perfect for devices that require frequent battery swaps, like consumer electronics and medical equipment.
· Simultaneously transmits data such as voltage, temperature, and battery status for seamless integration with BMS (Battery Management Systems).
· Includes foolproof designs, shock protection, short-circuit resistance, and options for IP67/IP68 waterproof/dustproof ratings.
· Maintains stable connections under high heat, humidity, or vibration—ideal for automotive and industrial environments.
· Configurable in terms of pole count, cable interface, housing materials, and even color—meeting diverse application needs.
V. Applications
· Use miniature spring or pogo-pin connectors for multiple insertions and high-speed signal transmission.
· Connects power battery packs to vehicle control systems; demands high current and vibration resistance with waterproofing.
· Applied in solar and wind power systems requiring high-temperature tolerance and long life cycles.
· Lightweight, reliable power connectors to ensure stable output and efficient energy delivery.
· Requires ultra-reliable contact performance and long-term stability with certifications for medical-grade usage.
VI. Conclusion
Though small in size, battery connectors act as the “energy hubs” of electronic devices. From electric vehicles to smart wearables, consumer electronics to industrial automation, their reliability, efficiency, and smart features directly influence the safety and performance of entire systems. As technology advances, battery connectors are evolving beyond basic interfaces—emerging as intelligent components essential to modern energy management systems.
