G6RL-1A DC5: Features, Specs & More
The Omron G6RL-1A DC5 power relay is a versatile and durable component designed for a wide range of industrial applications. It offers excellent performance and reliability, making it an ideal choice for systems that require precise control over electrical circuits. With its compact size and powerful features, the G6RL-1A DC5 is built to handle high voltages and currents, offering both stability and safety. In this comprehensive article, we'll delve into the intricacies of the G6RL-1A DC5, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
G6RL-1A DC5's Overview

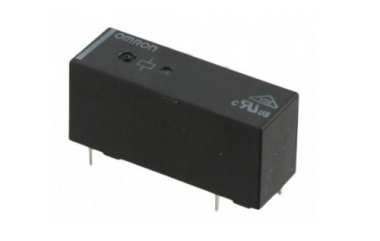

The Omron G6RL-1A DC5 is a power relay designed for use in a variety of industrial and commercial applications. It operates with a 5V DC coil voltage and provides single-pole single-throw (SPST) normally open (NO) contact arrangements. This relay is specifically engineered to manage switching functions in electronic circuits, offering high reliability and low switching losses. The G6RL-1A DC5 is built to handle a maximum switching current of 10A for NO contacts and 8A for normally closed (NC) contacts, making it ideal for controlling high-power devices.
Key Features
Let's delve into the standout features that make the G6RL-1A DC5 a standout in the world of electronics:
· With dimensions of 28.5mm x 10mm x 12.3mm, the G6RL-1A DC5 is designed to fit into tight spaces while maintaining robust durability.
· Capable of handling a maximum switching current of 10A for NO contacts and 8A for NC contacts, it can control larger loads efficiently.
· It operates in environments with temperatures ranging from -40°C to 85°C, ensuring reliable performance under harsh conditions.
· The relay boasts a mechanical life of up to 10 million operations, making it ideal for high-frequency switching applications.
· With an operate time of just 10ms and a release time of 5ms, this relay ensures quick response times, contributing to system efficiency.
· The G6RL-1A DC5 provides an insulation resistance of 1000 MΩ, ensuring enhanced safety during operation.
· This version focuses on reliability without additional features such as LED indicators or a push-to-test button, streamlining the design.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the G6RL-1A DC5:
Type | Parameter |
Contact Arrangement | SPST-NO |
Contact Form | 1 Form A |
DC Coil Voltage (V) | 5 |
Coil Current (mA) | 44 |
Coil Resistance (Ohm) | 113 |
Insulation Resistance (MOhm) | 1000 |
Maximum Contact Resistance (MOhm) | 100 |
Maximum Pick-Up Voltage | 3.5VDC |
Minimum Dropout Voltage | 0.5VDC |
Maximum AC Switching Voltage (V) | 250 |
Maximum DC Switching Voltage (V) | 30 |
Maximum Switching Current (A) | 10(NO)/8(NC) |
Operate Time (ms) | 10 |
Release Time (ms) | 5 |
Electrical Life (Operations) | 50000 |
Mechanical Life (Operations) | 10000000 |
LED Indicator | No |
Push to Test Button | No |
Coil Suppression Diode | No |
Relay Construction | Non-Latching |
Mounting | Through Hole |
Termination Style | PC Pin |
Number of Terminals | 4 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Product Weight (g) | 7.8 |
Product Length (mm) | 28.5 |
Product Depth (mm) | 10 |
Product Height (mm) | 12.3 |
Applications
The G6RL-1A DC5 is engineered for versatility across multiple electronic systems. Its robust electrical specs and mechanical endurance make it suitable for:
· Boilers: Controls heating elements and safety systems with dependable relay switching.
· PLCs (Programmable Logic Controllers): Serves as an interface for output controls.
· I/O Ports: Provides power switching between input/output channels in embedded systems.
· Timers: Switches loads based on preset time intervals efficiently.
· Temperature Controllers: Manages heating or cooling elements in industrial or HVAC systems.
G6RL-1A DC5's Manufacturer
Omron Electronic Components is the world's leading supplier of technologically advanced electronic components. Omron's vast product line includes switches (general, snap-action, control, DIP/SIP, miniature, sub-miniature, and thumbwheel), relays, connectors, optoelectronics, and sensors that are used in consumer electronics, computer peripherals, office automation products, and telecom applications. Omron Industrial Automation supplies the world with advanced electronics and control system components, including switches, relays, power supplies, sensors, calibration equipment, and cable assemblies.
Conclusion
The Omron G6RL-1A DC5 power relay stands out as a reliable and efficient solution for controlling high-power electrical circuits in a variety of industrial and commercial applications. With its compact design, robust features, and long mechanical life, it is an excellent choice for engineers looking to improve system reliability and performance.
