What Are Card Edge Connectors?
In modern electronic products, Card Edge Connectors are a highly efficient and reliable means of electrical connection. These connectors are widely used in various fields such as computers, communications, industrial control, and consumer electronics. As electronic devices become increasingly compact and performance demands continue to rise, Card Edge Connectors have become indispensable components in many industries due to their compact design, low cost, and high reliability. This article will provide a detailed introduction to Card Edge Connectors, covering their definition, types, working principle, characteristics and advantages, applications, and more.
Catalog
I. What Are Card Edge Connectors?
II. Types of Card Edge Connectors
IV. Characteristics and Advantages
I. What Are Card Edge Connectors?

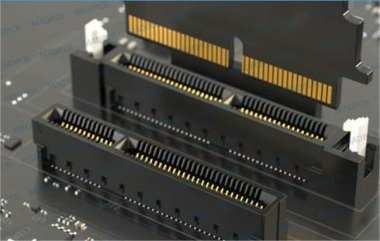

Card Edge Connectors, also known as edge connectors or card connectors, are components that establish electrical connections through the contact between the "gold fingers" on the edge of a printed circuit board (PCB) and the connector's female base. The design of Card Edge Connectors allows them to withstand frequent insertion and removal cycles, making them ideal for high-speed data transmission applications. They are primarily used in expansion cards, modular hardware systems, and various electronic devices, providing stable signal transmission and power connections.
II. Types of Card Edge Connectors
Card Edge Connectors come in various types depending on their installation method, contact arrangement, and application:
1. By Installation Method:
· Surface-Mount (SMT) Card Edge Connectors: Suitable for high-speed, large-volume automated production in modern electronic devices. They are soldered directly to the surface of the PCB, saving space and improving assembly efficiency.
· Through-Hole Card Edge Connectors: These connectors are soldered through holes in the PCB, commonly used in applications requiring higher mechanical support.
2. By Contact Arrangement:
· Single-Row and Dual-Row Connectors: Single-row connectors are suited for simpler connection needs, while dual-row or multi-row connectors offer higher contact density for more complex signal and power transmission requirements.
· High-Speed Micro-Miniature Connectors: These are used in applications requiring high data transfer rates and low signal interference, such as PCIe and CXL high-speed communication protocols.
III. Working Principle
Card Edge Connectors work by creating an elastic pressure contact between the PCB's gold fingers and the contacts in the connector base. During insertion, the slotted plastic base guides the gold fingers into alignment, and the spring contacts provide continuous pressure, ensuring low impedance and stable electrical connection. When removed, the spring contacts return to their original position, minimizing wear on the gold fingers, making these connectors ideal for repeated insertion and removal.
IV. Characteristics and Advantages
· High Signal Integrity: By optimizing contact materials and arrangements, Card Edge Connectors ensure high-speed transmission for protocols such as PCIe® and CXL®.
· Space and Cost Savings: These connectors eliminate the need for separate plugs and cables by using the PCB edge itself as the connector, simplifying designs and reducing manufacturing costs.
· Simple Structure and Customizability: The base and contact design are flexible, allowing customization of materials and locking structures based on insertion cycles and environmental conditions such as high temperature and humidity.
· Strong Reliability: Gold-plated or tin-plated contacts prevent oxidation, ensuring long-term stable contact performance.
V. Applications
· Computers and Servers: Used in PCI, PCI-Express expansion cards, power modules, battery management modules, etc.
· Communication Devices: Employed in base station modules, network cards, and switchboard cards for high-frequency signal transmission.
· Industrial Control and Measurement: Used in PLC interfaces, measurement instruments, and control unit cards.
· Consumer Electronics: Provides modular connection solutions for applications such as LED driver boards, industrial cameras, and automotive electronics.
VI. Conclusion
Card Edge Connectors, as an important connector component in the electronics industry, play a vital role in providing efficient and reliable electrical connections. Whether in computers, communication devices, industrial control, or consumer electronics, Card Edge Connectors have become irreplaceable. With the continuous development of electronic products, the demand for Card Edge Connectors is growing, and their applications will become even more widespread in the future.
