What Are RF Amplifiers?
RF amplifiers (Radio Frequency Amplifiers) are critical components in modern wireless communication and electronic systems. With the rapid advancement of technologies such as 5G, IoT (Internet of Things), and satellite communications, the demand for high-performance RF amplifiers is growing rapidly. These amplifiers enhance the strength of RF signals, ensuring signal quality and system stability. As such, they are essential in applications like communication base stations, radar systems, and consumer electronics. This article provides a comprehensive overview of RF amplifiers, including their definition, working principle, types, key technical parameters, and applications.
Catalog

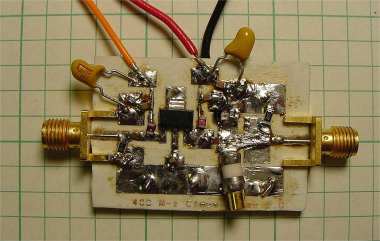

I. What Is an RF Amplifier?
An RF amplifier is an electronic device specifically designed to amplify high-frequency signals, typically in the range of several MHz to several GHz. It increases the power level of weak input signals to meet the system's requirements for signal strength and quality. RF amplifiers are generally categorized into two main types based on their application:
· Low Noise Amplifiers (LNA): Used at the receiving end to enhance signal sensitivity.
· Power Amplifiers (PA): Used at the transmitting end to output high-power signals.
II. Work Principles
The core function of an RF amplifier is signal amplification using transistors such as Bipolar Junction Transistors (BJT) or Field Effect Transistors (FET) operating under high-frequency conditions. The RF signal is fed into the control terminal (base or gate) of the transistor. With a stabilized bias circuit, the transistor converts DC power from the supply into amplified AC RF output energy.
To ensure maximum power transfer and maintain signal integrity, RF amplifiers are also equipped with input and output impedance matching networks.
III. Types of RF Amplifiers
· Low-Noise Amplifier (LNA): Designed for the receiving side, LNAs offer ultra-low noise figures (NF), significantly improving receiver sensitivity. They are commonly found in smartphones, satellite receivers, and GPS systems.
· Power Amplifier (PA): These amplify transmission signals and come in various classes—A, B, AB, C, D, E—each offering a different balance between linearity and efficiency.
· Broadband Amplifiers: Capable of operating across multiple frequency bands, these are ideal for multi-standard communication devices.
· Narrowband Amplifiers: Optimized for specific frequency ranges, these are used in specialized communications and radar systems.
IV. Key Technical Parameters
· Gain: The ratio of output to input power, typically expressed in decibels (dB).
· Noise Figure (NF): Indicates how much noise the amplifier adds to the signal. Lower NF values are better for signal reception.
· 1 dB Compression Point (P1dB): The point at which output gain drops by 1 dB, indicating the limit of linear amplification.
· Third-Order Intercept Point (IP3): A key indicator of linearity, estimating intermodulation distortion levels.
· Bandwidth: The frequency range over which gain remains consistent. Critical for broadband amplifiers.
· Output Power: Maximum sustained output power (Psat) for PAs, which determines coverage range and transmission capability.
· Efficiency: The ratio of RF output power to DC input power, crucial for power management and thermal design.
V. Applications
· Cellular Communication: Base station PAs use LDMOS or GaN, while smartphones integrate CMOS/SiGe LNA + PA front-end modules.
· Satellite and Microwave Links: High-frequency, high-power GaAs/GaN PAs and low-noise GaAs/HEMT LNAs enable long-distance communication.
· Radar and Defense: High-linearity, high-power PAs and ultra-sensitive LNAs are used for jamming resistance, electronic warfare, and imaging.
· Broadcasting: Digital TV and wireless/cable broadcast systems rely on high-power PAs to ensure signal clarity and coverage.
· Consumer Electronics: RF front-end modules are widely integrated into smartphones, IoT devices, and wearables—mass production reduces cost.
· Test & Measurement: Used in RF signal sources and receivers for precise signal amplification in instruments like network analyzers and spectrum analyzers.
VI. Conclusion
As communication technology advances into the millimeter-wave spectrum, RF amplifiers face increasing demands for higher frequency performance, efficiency, and integration. Gallium Nitride (GaN) technology is becoming dominant in power amplifiers due to its high power density and efficiency, while CMOS and SiGe technologies are key in consumer electronics for their cost-effectiveness and high integration.
Future trends in RF amplifier development will focus on intelligent design and support for multi-frequency, multi-mode systems—paving the way for the next generation of smart and high-performance wireless solutions.
