CSRN2512FKR500: Features, Specs & More
When it comes to reliable and precise resistors for automotive and industrial electronics, the Stackpole Electronics CSRN2512FKR500 stands out as a top choice. This thick film resistor combines durability, accuracy, and thermal stability, making it suitable for critical applications such as current sensing and power management. In this comprehensive article, we'll delve into the intricacies of the CSRN2512FKR500, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
CSRN2512FKR500's Overview

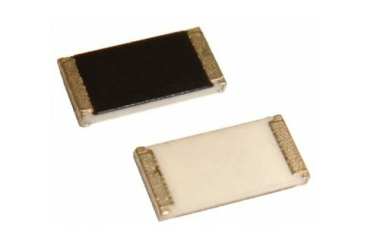

The CSRN2512FKR500 is a thick film resistor manufactured by Stackpole Electronics, Inc. It is a 2512 size surface mount resistor with a resistance value of 0.5 Ohms (500 milliohms). This component is designed to handle a power rating of 2 watts, ensuring efficient dissipation of heat during operation. The resistor features a tolerance of ±1%, meaning its resistance is tightly controlled for precision applications. Additionally, it supports current sensing functions, making it valuable in circuits requiring accurate current measurement.
Key Features
Let's delve into the standout features that make the CSRN2512FKR500 a standout in the world of electronics:
· The resistor offers a resistance value of 0.5 Ohms for low resistance needs.
· It has a precise tolerance level of ±1% for consistent performance.
· This component supports current sensing capabilities for accurate circuit monitoring.
· It features a power rating of 2 watts to handle substantial electrical loads.
· The thick film technology provides durability and stable electrical characteristics.
· Operating temperatures range from -55°C to 155°C, suitable for harsh environments.
· The temperature coefficient is ±200 ppm/°C, ensuring resistance stability with temperature changes.
· Packaged in a 2512 rectangular SMD case for easy surface mounting.
· The resistor comes with pad termination and two terminals for secure electrical connections.
· It is supplied in tape and reel packaging, ideal for automated manufacturing processes.
· The product carries the AEC-Q200 automotive standard certification, indicating high reliability.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the CSRN2512FKR500:
Type | Parameter |
Resistance Value (Ohm) | 500m |
Tolerance | 1% |
Current Sensing | Yes |
Power Rating (W) | 2 |
Technology | Thick Film |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 155 |
Temperature Coefficient (ppm/°C) | ±200 |
Temperature Range @ Derated Power (°C) | 70 to 155 |
Fail Safe Fusible Resistor | No |
Anti-Surge | No |
Anti-Sulfurated | No |
Case Size | 2512 |
Termination Style | Pad |
Number of Terminals | 2 |
Packaging | Tape and Reel |
Package Type | SMD |
Package Shape | Rectangular |
Package/Case | 2512 |
Product Length (mm) | 6.35 |
Product Depth (mm) | 3.1 |
Product Height (mm) | 0.6 |
Product Weight (g) | 0.04 |
Mounting | Surface Mount |
Applications
The CSRN2512FKR500 resistor is ideal for applications where precise current sensing and power handling are critical. Typical uses include:
· Automotive electronic control units (ECUs) that demand high reliability and temperature tolerance.
· Industrial machinery where durable and accurate resistors ensure stable sensor readings.
· Power management circuits requiring reliable 2-watt resistors for load control.
· Surface mount assembly in automated electronics manufacturing due to its tape and reel packaging.
· Consumer electronics needing compact resistors with tight tolerance and stability over temperature.
CSRN2512FKR500's Manufacturer
Founded in 1928, Stackpole Electronics is a leading global manufacturer of resistive components including Thick and Thin Film Surface Mount resistors, Axial Leaded and Wirewound resistors, Current Sense resistors, Varistors, Inductors and various Power Resistors.
Conclusion
The Stackpole CSRN2512FKR500 thick film resistor stands out for its precision, durability, and automotive-grade reliability. It offers a balanced combination of low resistance, accurate tolerance, and robust power handling in a compact 2512 SMD package. Whether you're designing automotive control systems or industrial sensors, this resistor delivers stable performance in challenging environments. Its compliance with AEC-Q200 standards also guarantees confidence in automotive applications.
