What Are RF Detectors?
With the rapid advancement of wireless communications, radar, electronic warfare, and the Internet of Things (IoT), RF detectors have become indispensable components for measuring RF signals and controlling power. These devices convert high-frequency radio signals into measurable DC voltages or digital outputs, providing crucial support for system power monitoring, automatic gain control (AGC), and security detection. This article offers a comprehensive overview of RF detectors, including their definition, working principles, types, features, advantages, and applications.
Catalog
I. What Are RF Detectors?

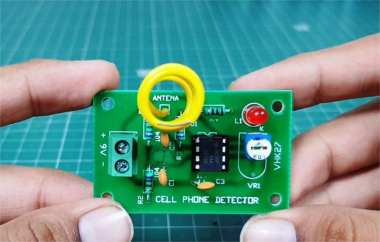

An RF detector is an electronic component designed to sense the strength of radio frequency (RF) signals and convert them into a corresponding DC voltage or digital signal. They are widely used in wireless communication devices, test and measurement instruments, and security equipment, playing a critical role in power monitoring and signal strength feedback.
II. Working Principle
RF detectors typically use the rectifying properties of semiconductor diodes or other nonlinear components to convert RF signals into DC voltage. Specifically, the incoming high-frequency AC signal passes through a diode that allows current flow in only one direction, generating a voltage peak proportional to the input power. This signal then goes through a filter circuit that removes the AC component, producing a stable DC voltage output. This output can be used by subsequent circuits for power calculation or display.
III. Types
· Peak/Envelope Detectors: These use RF diodes to directly rectify the signal and an RC network to extract the envelope, capturing instantaneous peak values. They are commonly used for envelope tracking and peak monitoring.
· Logarithmic Detectors: These output a voltage linearly proportional to the logarithm of the RF power (in dBm), offering an ultra-wide dynamic range up to 100 dB. They are ideal for AGC and pulse detection applications.
· RMS Detectors: These directly measure the root mean square (RMS) value of signals, with measurement errors under ±0.25 dB for complex waveforms. They are widely applied in CDMA/WCDMA system power measurements.
· Nonlinear Junction Detectors (NLJD): These emit high-frequency RF energy into the target area and detect harmonics re-radiated by nonlinear elements like PN junctions. NLJDs are commonly used for counter-surveillance and detection of concealed electronic devices.
IV. Features and Advantages
· Wide Frequency Coverage: Products range from DC up to 67 GHz, such as ADI’s packaged envelope detectors supporting frequencies up to 67 GHz.
· Ultra-Wide Dynamic Range: Log detectors can achieve dynamic ranges up to 100 dB, covering levels from about –65 dBm to +35 dBm.
· Fast Response: Some linear detectors offer response times as low as 165 nanoseconds, meeting the power control demands of TDMA systems.
· High Accuracy and Stability: Advanced RMS detectors deliver measurement errors less than ±0.25 dB in broadband modulated environments, with well-controlled temperature drift.
· High Integration: The latest RF front-end modules integrate detectors, ADCs, and digital processing units, enabling intelligent measurements while optimizing size and power consumption.
V. Applications
· Wireless Communications: Power control, AGC, and signal quality monitoring in base stations and user devices.
· Test and Measurement: Front-end detection modules for power meters, spectrum analyzers, and signal integrity testers.
· Radar and Electronic Warfare: Pulse power measurement, echo signal detection, and interference analysis.
· Security and Counter-Surveillance: NLJDs for detecting hidden electronic recording and eavesdropping devices.
· RF Immunity Testing: Assessing the robustness of electronic products in strong RF environments.
VI. Conclusion
As 5G/6G, millimeter-wave radar, and IoT technologies continue to expand rapidly, RF detectors will evolve toward higher frequencies, wider dynamic ranges, lower power consumption, and greater integration. The trend toward digital and intelligent detection—with integrated ADCs and DSPs—will dominate the market, enabling more accurate and faster power detection for wireless communication and advanced test equipment.
