What Is a Balun?
Baluns are critical RF components widely used across various industries, including wireless communications, broadcasting, test and measurement, and automotive electronics. With the rapid development of modern communication technologies, the demand for high-performance and reliable signal transmission has increased significantly. Serving as a vital bridge between balanced and unbalanced signals, the balun's role has become increasingly important. This article provides a comprehensive overview of baluns, covering their definition, working principle, technical specifications, features and advantages, and typical applications.
Catalog
I. What Is a Balun?

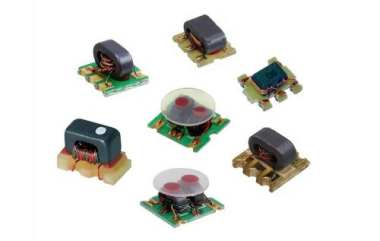

A balun (short for “balanced to unbalanced”) is an electronic component commonly used in RF and microwave systems. Its primary function is to convert balanced signals (such as differential signals) to unbalanced signals (such as single-ended signals), or vice versa. A typical balun consists of one unbalanced port and two balanced ports, with the two balanced outputs having equal amplitude but opposite phase. This configuration enables efficient signal mode conversion.
II. Working Principle
Baluns operate by converting signal modes through electromagnetic coupling or transmission line structures. The common types of baluns include:
· Transformer-type Balun: Uses windings and magnetic coupling to transform signals, also providing impedance matching. Suitable for low to mid-frequency applications.
· Transmission Line-type Balun: Employs transmission lines of specific lengths and structures to convert balanced and unbalanced signals based on electromagnetic wave phase characteristics, ideal for high-frequency use.
· Marchand Balun: Composed of two coupled quarter-wavelength transmission lines, offering wide bandwidth and excellent phase balance. Well-suited for broadband RF systems.
Through these mechanisms, baluns efficiently perform signal mode conversion, optimizing signal transmission performance.
III. Technical Specifications
· Operating Frequency Range: Generally spans from tens of megahertz to tens of gigahertz, depending on the balun’s design. Marchand baluns are known for their wide frequency coverage, ranging from hundreds of megahertz to tens of gigahertz.
· Insertion Loss: A key performance metric, typically less than 1 dB, ensuring efficient and high-quality signal transmission.
· Isolation: Effective isolation, usually above 20 dB, prevents signal leakage and enhances system stability.
· Impedance Matching: Common standards are 50 Ω and 75 Ω. Baluns are designed to provide impedance transformation to minimize signal reflection.
· Phase Balance: Ideally, the phase difference between the two balanced outputs is close to 180°, ensuring signal integrity and suppressing interference.
· Power Handling: Depends on materials and structural design, supporting applications from low-power RF signals to high-power transmission.
IV. Features and Advantages
· Efficient Signal Mode Conversion: Seamlessly converts between balanced and unbalanced signals without distortion.
· Excellent Impedance Matching: Reduces signal reflections and energy loss.
· Strong Common Mode Rejection: Enhances system immunity to interference.
· Wideband Operation: Supports multi-band and multi-standard communication systems.
· Compact and Easily Integratable: Meets modern electronic devices’ demands for miniaturization.
V. Applications
· Used in RF front-end modules for signal conversion and impedance matching between antennas and transceivers.
· Applied in antenna systems to convert between balanced and unbalanced signals, improving signal transmission quality.
· Integrated into automotive communication systems and advanced driver-assistance systems (ADAS) for signal processing and interference suppression.
· Employed in RFID systems for signal matching between antennas and chips to boost identification efficiency.
· Utilized in test and measurement equipment, such as network analyzers, for signal mode conversion and impedance matching.
VI. Conclusion
As a vital electronic component that connects balanced and unbalanced signals, baluns play an irreplaceable role in modern communication and electronic systems. With ongoing technological advancements and expanding application domains, the performance and usage of baluns will continue to grow, making them one of the key components driving the development of electronic communication technologies.
