MCP2200-I/SO: Features, Specs & More
If you're working in embedded systems or designing USB-connected devices, the Microchip MCP2200-I/SO is a name you should know. This small but mighty protocol converter enables seamless communication between USB and UART interfaces, making it a reliable bridge between your PC and embedded systems. In this comprehensive article, we'll delve into the intricacies of the MCP2200-I/SO, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MCP2200-I/SO's Overview

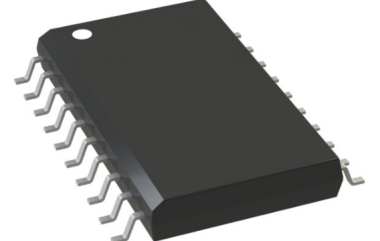

The MCP2200-I/SO is a USB 2.0 to UART protocol converter with integrated General Purpose Input/Output (GPIO) capabilities. Manufactured by Microchip Technology, this device is designed to provide an easy, reliable connection between USB interfaces and UART serial devices. It comes in a 20-pin SOIC Wide package and supports both 3.3V and 5V systems, making it flexible for various voltage environments.
Key Features
Let's delve into the standout features that make the ENC424J600-I/ML a standout in the world of electronics:
· Full-speed USB 2.0 support at 12 Mb/s
· USB CDC composite device for communication and I/O control
· 128-byte buffer to manage UART data flow (64-byte transmit, 64-byte receive)
· Bus-powered or self-powered options
· Configurable VID/PID and string descriptors
· Windows Virtual COM Port (VCP) driver support for easy setup
· Baud rates from 300 to 1000k with dynamic SET LINE CODING command support
· Eight configurable GPIO pins for flexible I/O control
· 256 bytes of user EEPROM for custom configurations
· LED outputs for USB activity (TxLED, RxLED)
· Operating voltage range of 3.0V to 5.5V
· 4kV ESD protection compliant with HBM standards
· Industrial temperature range from -40°C to +85°C
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the ENC424J600-I/ML:
Type | Parameter |
EU RoHS | Compliant |
ECCN (US) | EAR99 |
Part Status | Active |
HTS | 8542.39.00.60 |
Automotive | Unknown |
PPAP | Unknown |
Mounting | Surface Mount |
Package Height | 2.05(Min) |
Package Width | 7.5 |
Package Length | 12.8 |
PCB changed | 20 |
Standard Package Name | SO |
Supplier Package | SOIC W |
Pin Count | 20 |
Lead Shape | Gull-wing |
Applications
The MCP2200-I/SO is built for engineers and developers who need dependable USB-to-serial conversion. Here are common use cases:
· Embedded system development for debugging or interfacing microcontrollers with a PC
· USB-enabled industrial equipment where UART is the communication standard
· Custom peripherals that require configuration through serial commands
· I/O control systems utilizing GPIO functionality for triggering sensors or indicators
· Device programmers that need reliable serial communication over USB
MCP2200-I/SO's Manufacturer
Microchip Technology, a global leader in the semiconductor industry, stands at the forefront of innovation, consistently pushing the boundaries of technology to create solutions that power the interconnected world. With a rich history dating back to 1989, Microchip has become synonymous with cutting-edge microcontroller and analog products. Renowned for its commitment to quality, reliability, and customer satisfaction, the company offers a comprehensive portfolio of integrated circuits and embedded solutions. Microchip's diverse range of products caters to a wide array of industries, including automotive, industrial, consumer electronics, and healthcare.
Conclusion
If you're in the market for a USB to UART bridge that offers more than just data transfer, the MCP2200-I/SO is a smart investment. With GPIO control, EEPROM customization, and plug-and-play driver support, it's a versatile component suited for a wide range of electronics projects.
