What Are Switched Capacitor Filters?
With the rapid advancement of electronics, the demand for high-performance, low-power, and highly integrated filters continues to grow. Switched Capacitor Filters (SCFs) have emerged as a critical component in modern analog signal processing due to their high precision, ease of integration, and programmability. This article provides a detailed exploration of SCFs, covering their definition, working principles, key characteristics, advantages, and applications.
Catalog
I. What Are Switched Capacitor Filters?
III. Key Features and Advantages
I. What Are Switched Capacitor Filters?

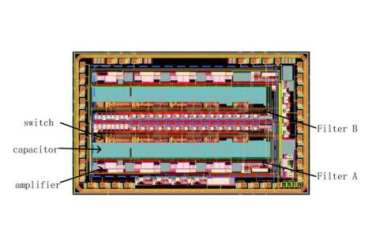

Switched Capacitor Filters are a type of electronic filter that simulates the behavior of resistors using capacitors and high-speed electronic switches. Unlike traditional RC filters that rely on physical resistors and capacitors, SCFs achieve filtering functionality by controlling the switching frequency. This eliminates issues like resistor value drift and makes SCFs ideal for integration into modern IC designs, where capacitors can be manufactured with higher precision than resistors.
II. Working Principle
SCFs operate by rapidly switching capacitors on and off (typically controlled by a clock signal) to transfer charge, effectively replacing traditional resistors. The key steps include:
· Switching Action: MOSFET switches alternately connect the capacitor to the input or output.
· Charge Transfer: Under the clock signal’s control, the capacitor periodically stores and releases charge, mimicking resistor-based current flow.
· Filter Implementation: The filter's cutoff frequency is determined by the capacitor ratio and clock frequency, enabling precise frequency response tuning.
Mathematically, the equivalent resistance (Req) is defined by the switching frequency (fsw) and capacitance (C) as:
This relationship ensures that the filter's frequency response depends only on capacitor ratios and clock frequency, avoiding the tolerance issues found in traditional RC filters.
III. Key Features and Advantages
· High Precision and Stability: Filter characteristics are determined by capacitor ratios and clock frequency, making them resistant to process and temperature variations.
· Integration-Friendly: No need for large-value resistors. Well-suited to CMOS technology and easily integrated with digital circuits on a single chip.
· Programmability: Filter parameters can be adjusted simply by changing the clock frequency, offering great flexibility.
· Low Power Consumption: Consumes less power than continuous-time filters, making it ideal for portable and battery-powered devices.
· Strong Noise Immunity: Switching action helps suppress low-frequency noise, such as 1/f noise.
IV. Applications
SCFs are used across a wide range of industries and applications:
· Audio Processing: Ideal for voice codecs, noise reduction systems, and audio equalizers.
· Communication Systems: Serve as anti-aliasing filters or signal reconstruction filters in ADC/DAC front ends.
· Sensor Interfaces: Amplify and filter weak signals from biosensors or temperature sensors.
· Medical Electronics: Used in signal conditioning for ECG (electrocardiograms) and EEG (electroencephalograms).
· Industrial Control: Enhance noise suppression in motor control and data acquisition systems.
V. Conclusion
Switched Capacitor Filters are indispensable components in today's electronic systems due to their high accuracy, integration capability, and flexibility. As the electronics industry continues to advance, SCF technology will keep evolving—enabling more innovative applications and driving the development of next-generation electronic components.
