MJF6388G: Features, Specs & More
When it comes to high-power transistors for electronics design, the onsemi MJF6388G stands out as a reliable and versatile choice. This NPN Darlington transistor combines robust current handling with high voltage tolerance, making it ideal for various power amplification and switching applications. In this comprehensive article, we'll delve into the intricacies of the MJF6388G, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
MJF6388G's Overview

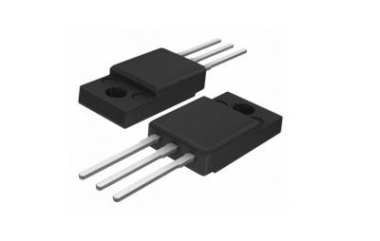

The onsemi MJF6388G is a high-power NPN Darlington transistor. It is designed to handle a maximum collector-emitter voltage of 100V and continuous collector current up to 10A. Packaged in a TO-220FP form factor with three pins plus a tab, it is suitable for through-hole mounting in electronic circuits. The Darlington configuration allows for high current gain, enabling the transistor to amplify weak signals efficiently.
Key Features
Let's delve into the standout features that make the MJF6388G a standout in the world of electronics:
· The MJF6388G is a single NPN transistor element.
· It supports a maximum collector-emitter voltage of 100 volts.
· It can handle continuous DC collector current up to 10 amperes.
· The transistor dissipates up to 2000 milliwatts of power.
· It operates within a temperature range from -65°C to 150°C.
· Its minimum DC current gain varies between 100 to 3000 depending on current and voltage conditions.
· The maximum collector cut-off current is only 10 microamperes, ensuring low leakage.
· It features a TO-220FP package, providing excellent heat dissipation.
· The transistor pins use a through-hole lead shape for secure PCB mounting.
· It has a maximum base-emitter saturation voltage of 2.8 volts at low current conditions.
· The tab is integrated for easy mounting and heat sinking.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the MJF6388G:
Type | Parameter |
Type | NPN |
Configuration | Single |
Number of Elements per Chip | 1 |
Maximum Collector-Emitter Voltage (V) | 100 |
Maximum Collector Base Voltage (V) | 100 |
Maximum Emitter Base Voltage (V) | 5 |
Maximum Base Emitter Saturation Voltage (V) | 2.8@0.01A@5A|4.5@0.1A@10A |
Maximum Continuous DC Collector Current (A) | 10 |
Maximum Collector Cut-Off Current (uA) | 10 |
Maximum Collector-Emitter Saturation Voltage (V) | 2@6mA@3A|2.5@80mA@8A|2@0.01A@5A|3@0.1A@10A |
Minimum DC Current Gain | 100@10A@3V|1000@5A@3V|200@8A@4V|3000@3A@4V |
Maximum Power Dissipation (mW) | 2000 |
Minimum Operating Temperature (°C) | -65 |
Maximum Operating Temperature (°C) | 150 |
Packaging | Tube |
Mounting | Through Hole |
Package Height | 16.12(Max) |
Package Width | 4.9(Max) |
Package Length | 10.63(Max) |
PCB changed | 3 |
Tab | Tab |
Standard Package Name | TO |
Supplier Package | TO-220FP |
Pin Count | 3 |
Lead Shape | Through Hole |
Applications
The onsemi MJF6388G is widely used in power electronics circuits that require high current and voltage handling capability. Typical applications include:
· Motor control circuits, where high current switching is needed.
· Audio amplifier output stages requiring high gain and power.
· Power regulators and DC-DC converters.
· Switching power supplies.
· Relay drivers and solenoid control.
· Industrial automation equipment.
· General-purpose switching in high-power applications.
MJF6388G's Manufacturer
ON Semiconductor, stylized in lowercase as "onsemi", stands at the forefront of technological innovation, driving advancements that power intelligent and energy-efficient systems worldwide. With a commitment to delivering cutting-edge solutions, ON Semiconductor provides a comprehensive portfolio of semiconductor products, spanning power management, analog, sensor, and connectivity solutions. Leveraging a legacy of over 20 years, the company has solidified its position as a trusted partner for industries ranging from automotive and industrial to consumer electronics and healthcare.
Conclusion
The onsemi MJF6388G is a robust NPN Darlington transistor designed for high-voltage and high-current applications. Its strong current gain and power dissipation capabilities make it an excellent choice for engineers working on power amplification and switching projects. With a durable TO-220FP package and a wide operating temperature range, the MJF6388G offers versatility and reliability.
