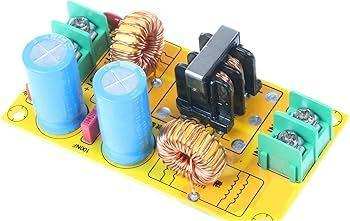

What Are Power Line Filter Modules?
In today's electronic systems, electromagnetic interference (EMI) has become a critical factor affecting performance, stability, and electrical safety. As electromagnetic compatibility (EMC) standards grow increasingly stringent, Power Line Filter Modules have emerged as an indispensable solution. These modules are widely used across industrial automation, power systems, communication equipment, medical devices, and more. This article offers a comprehensive overview of Power Line Filter Modules, covering their definition, working principle, technical features, advantages, and key applications.
Catalog
I. What Are Power Line Filter Modules?
I. What Are Power Line Filter Modules?
Power line filter modules are electronic components used in both AC and DC power systems. Their primary function is to suppress high-frequency noise interference either introduced from external sources or generated within the equipment itself, preventing these disturbances from propagating through the power lines. Typically, these modules integrate passive components such as inductors and capacitors, forming common-mode and differential-mode filter circuits. Advanced modules may also incorporate active compensation circuits to dynamically suppress high-frequency interference.
Structurally, power line filter modules come in various types, including single-phase, three-phase, AC input filters, and DC filters, designed to meet the diverse requirements of different electrical systems.
II. Working Principle
Power line filter modules operate mainly based on the low-pass filtering principle, eliminating high-frequency interference signals above the fundamental frequency (50Hz or 60Hz). They target two main types of noise:
· Common Mode Noise: High-frequency noise between the power lines (L/N) and ground, usually generated by switching power supplies, variable frequency drives, and similar devices.
· Differential Mode Noise: High-frequency signals between the live (L) and neutral (N) lines, typically produced by high-speed switching within the load.
The core components in a filter module generally include:
· X Capacitors: Connected between L and N lines to suppress differential mode noise.
· Y Capacitors: Connected between L-G and N-G to reduce common mode noise.
· Common Mode Choke: Uses magnetic flux cancellation to present high impedance to common mode signals while maintaining low impedance to the fundamental frequency.
· Differential Mode Inductors (optional): Enhance attenuation of differential mode interference.
By combining these components, power line filter modules effectively suppress EMI signals and improve electromagnetic compatibility.
III. Key Technical Parameters
When selecting a power line filter module, the following parameters are critical:
· Rated Voltage: Common options include AC 110V, 230V, 277V, with industrial-grade modules rated up to 480V.
· Rated Current: Ranges from 0.5A to over 100A, matched to the load requirements.
· Insertion Loss: Measured in dB, indicates the filter's ability to attenuate interference signals.
· Leakage Current: Particularly important for medical equipment, often required to be ≤ 0.5mA.
· Common Mode/Differential Mode Attenuation: Effectiveness across frequency ranges, typically from 150kHz to 30MHz.
· Safety Certifications: Including UL, CSA, ENEC, VDE, CQC, etc., chosen according to target market regulations.
· Operating Temperature Range: Generally -25°C to +85°C, with extended ranges available for high-reliability applications.
These specifications determine whether the filter module can meet the EMC and electrical performance requirements of a particular application.
IV. Applications
· Switched-Mode Power Supplies (SMPS): Suppress both common and differential mode noise generated by high-frequency switching.
· Industrial Variable Frequency Drives/Inverters: Control motor operations while mitigating high-frequency conduction noise.
· Communication and Base Station Equipment: Block noise on DC power lines to ensure signal integrity.
· Medical Devices: Ensure EMI regulatory compliance and maintain low leakage current for patient safety.
· Data Center Power Interfaces: Enhance EMI cascade suppression and improve system immunity.
V. Conclusion
As a vital component to ensure electromagnetic compatibility, power line filter modules hold a key position in modern electronic system design. Whether in industrial power systems or consumer product power management, proper selection and application of filter modules can significantly improve system reliability and safety. With growing application complexity and stricter regulatory demands, future developments will trend toward wider frequency bandwidth, active dynamic control, and compact high-efficiency designs, making power line filter modules an essential technology for electronic engineers to master.
