C1005X5R1C225K050BC: Features, Specs & More
When it comes to designing compact, high-performance electronic circuits, every component matters. Among them, ceramic capacitors are the unsung heroes, quietly ensuring smooth power delivery and signal filtering. One standout in this category is the TDK C1005X5R1C225K050BC. In this comprehensive article, we'll delve into the intricacies of the C1005X5R1C225K050BC, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
C1005X5R1C225K050BC's Overview
C1005X5R1C225K050BC's Manufacturer
C1005X5R1C225K050BC's Overview

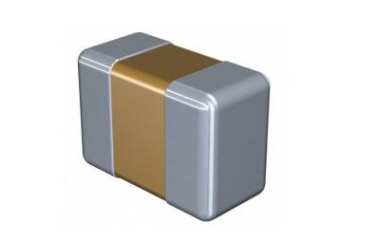

The TDK C1005X5R1C225K050BC is a multilayer ceramic capacitor (MLCC) engineered for surface-mount applications. It belongs to the X5R dielectric family, meaning it offers stable capacitance across a moderate temperature range. With a capacitance of 2.2µF and rated voltage of 16V, this SMD capacitor is designed for compact, high-frequency circuits where size, reliability, and low equivalent series resistance (ESR) are key considerations.
Key Features
Let's delve into the standout features that make the C1005X5R1C225K050BC a standout in the world of electronics:
· The capacitor has a capacitance value of 2.2µF.
· It supports a maximum voltage of 16V DC.
· The dielectric type is X5R, known for reliable performance in moderate temperature environments.
· It has a 10% tolerance, making it ideal for general-purpose applications.
· The component is surface-mounted with a pad termination style.
· Low ESL (Equivalent Series Inductance) supports high-speed circuit operation.
· It is built in a 0402 package size (1.0mm x 0.5mm).
· The product features a flat ceramic construction for compact board design.
· It supports microwave applications, expanding its use in RF and high-frequency designs.
· Operational temperature ranges from -55°C to +85°C.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the C1005X5R1C225K050BC:
Type | Parameter |
Capacitance Value | 2.2uF |
Tolerance | 10% |
Voltage | 16VDC |
Equivalent Series Resistance Type | Low |
Dielectric | X5R |
Technology | Standard |
Microwave Application | Yes |
Special Features | Low ESL |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Dissipation Factor (%) | 10 |
Size (mm) | 1 X 0.5 X 0.5 |
Package/Case | 0402 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 85 |
Packaging | Tape and Reel |
Product Length (mm) | 1 |
Product Depth (mm) | 0.5 |
Product Height (mm) | 0.5 |
Length Tolerance (mm) | ±0.05 |
Depth Tolerance (mm) | ±0.05 |
Height Tolerance (mm) | ±0.05 |
* C1005X5R1C225K050BC's Datasheet
Applications
Thanks to its compact form factor, stability, and low ESL design, this capacitor is commonly used in:
· General electronic equipment for stable and compact circuit designs.
· Mobile devices, including smartphones and wearables where space-saving components are vital.
· Servers, PCs, and tablets requiring consistent filtering and decoupling performance.
· Power supply circuits where low ESR capacitors are essential for noise reduction and voltage regulation.
C1005X5R1C225K050BC's Manufacturer
TDK Corporation was established in December 1935 with the aim of becoming the world's first commercial manufacturer of the magnetic material ferrite. TDK, since then, has continued ceaselessly to turn out a variety of products and services making use of its materials technology, centering on ferrite and ceramics, and processing technology, which draws out the properties of materials to the maximum degree.
Conclusion
The TDK C1005X5R1C225K050BC ceramic capacitor is more than just a passive component—it's a smart design choice. With strong electrical characteristics, rugged construction, and support for high-volume manufacturing, this MLCC ensures your designs meet today's compact, performance-driven demands. Backed by TDK's manufacturing excellence, it's a component you can trust across multiple application domains.
