What Are Thermal Fuses?
With the increasing safety requirements of electronic products, thermal fuses have become indispensable as key thermal protection components across a wide range of electronic devices. By responding rapidly to overheating conditions, they effectively prevent fires or damage caused by abnormal temperatures, ensuring the safety of both users and equipment. This article will provide an in-depth look at thermal fuses, covering their definition, working principle, key features and advantages, main applications, and more.
Catalog
I. What Are Thermal Fuses?

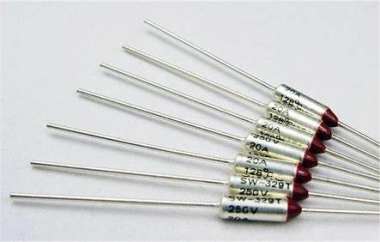

A thermal fuse, also known as a thermal cutoff or thermal protector, is a one-time-use temperature-sensitive safety device. It operates based on the temperature of its environment or the device component it monitors. When the temperature reaches a predetermined trigger point, the temperature-sensitive material inside the fuse melts or breaks, cutting off the electrical circuit and providing overheat protection. Unlike traditional current-based fuses, thermal fuses are triggered by temperature rather than electrical current.
II. Working Principle
Thermal fuses typically consist of a temperature-sensitive element (such as a thermal alloy or thermoplastic pellets), a spring mechanism, and metal electrodes. When the ambient temperature exceeds the fuse’s set threshold, the temperature-sensitive element melts or softens, causing the spring to release and push the metal contacts apart, thus interrupting the current. This process is irreversible—once triggered, the fuse cannot be reset and must be replaced to restore protection.
III. Features and Advantages
· One-time Disconnect: Must be replaced after triggering.
· Low Internal Resistance and High Interrupting Capacity: Many models can handle currents of tens of amperes (e.g., 25 A at 250 VAC).
· High Temperature Accuracy: Typical trigger temperature tolerance is ±2 °C.
· Multiple Packaging Options: Available in axial, radial, and surface-mount packages to suit various circuit layouts.
IV. Applications
Thermal fuses are widely used for overheat protection in various electrical and electronic products, including:
· Household appliances (e.g., dryers, rice cookers)
· Automotive electronics (e.g., HVAC systems, vehicle lighting)
· Industrial equipment
· Consumer electronics (e.g., chargers, power adapters)
V. Conclusion
Thanks to their unique ability to respond solely to temperature, their irreversible operation, and their fire-preventive safety, thermal fuses play a central role in ensuring the reliability of electronic devices. They are extensively applied across home appliances, industrial systems, power supplies, and automotive electronics, with the market steadily expanding. Looking ahead, the industry is moving towards higher precision, smarter integration, and greener, more environmentally friendly solutions.
