What Are Current Sense Transformers?
With the rapid development of power electronics, smart grids, electric vehicles (EVs), and industrial automation, the demand for precise current monitoring continues to grow. Current Sense Transformers (CSTs), along with integrated current sensing ICs, have become essential non-contact components used in high-performance power management systems, inverters, battery management systems (BMS), and motor controllers. This article offers a comprehensive overview of their definition, working principles, advantages, and applications.
Catalog
I. What Are Current Sense Transformers?
III. Key Features and Advantages
I. What Are Current Sense Transformers?

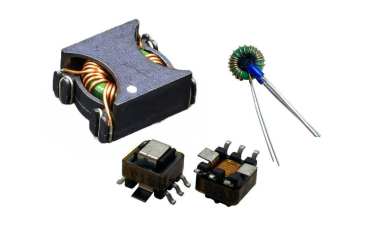

A Current Sense Transformer is an electronic component that measures current based on magnetic induction. It typically consists of a primary winding (or conductor) and one or more secondary windings. When current flows through the primary conductor, it generates a magnetic field, which induces a proportional voltage or current in the secondary winding—enabling isolated, non-contact current sensing.
Compared with traditional current sensing using shunt resistors, CSTs offer distinct advantages, such as high electrical isolation, improved accuracy, and lower power consumption.
II. Work Principles
CSTs operate based on the principles of electromagnetic induction:
· AC Current Measurement: When alternating current (AC) flows through the primary conductor, it creates an alternating magnetic field. This field induces a voltage in the secondary winding, which can be processed to calculate the primary current precisely.
· Integration with Current Sensing ICs: In recent years, many manufacturers have integrated Hall effect elements, magnetoresistive sensors, or current detection modules with traditional CST packaging. These hybrid designs result in modular, digitally-output current sensing ICs capable of measuring both AC and DC currents, enhancing system integration and reliability.
III. Key Features and Advantages
· High Isolation: CSTs typically offer isolation voltages up to 2400 VAC or more. For instance, the TDK EP series supports 2400 VAC and complies with IEC 60664 safety standards.
· Low Power Loss: Since CSTs do not introduce significant resistance into the circuit, they offer virtually zero power loss and do not interfere with the measured current path.
· Wide Bandwidth: Some models support bandwidths ranging from 50 kHz to 250 kHz or higher, ideal for high-frequency applications.
· High Accuracy and Linearity: Suitable for precision current measurement, especially in feedback control for switching power supplies.
IV. Application
· Power Electronics: CSTs provide accurate current feedback for switching power supplies, inverters, and circuit protection systems.
· Smart Grids: Used to monitor electrical parameters and optimize energy distribution, meeting strict isolation and accuracy requirements.
· Electric Vehicles: Essential for current sensing in battery packs, electric motors, and charging stations, where high precision and strong common-mode noise rejection are critical.
· Industrial Automation: Applied in motor control, energy efficiency monitoring, and protection systems.
· Data Centers: Deployed in high-power distribution systems to enable real-time current monitoring and improve power efficiency and operational safety.
V. Conclusion
Current Sense Transformers are indispensable components in modern electronic systems, evolving from traditional magnetic-core devices into highly integrated and digitalized solutions. Whether in high-power conversion, high-frequency control, or emerging energy technologies, CSTs and current sensing ICs continue to play a vital role. Choosing the right current sensing component is critical for ensuring system safety, energy efficiency, and cost control.
