ULN2003AD: Features, Specs & More

In the world of embedded electronics, power control is key. Whether you're building a motor driver, controlling relays, or designing a display system, having a reliable interface between logic signals and high-current loads is crucial. That's where the TI ULN2003AD comes in—a trusted 7-channel Darlington transistor array designed for seamless switching and load control in industrial, automotive, and consumer applications. In this comprehensive article, we'll delve into the intricacies of the ULN2003AD, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.



Catalog

ULN2003AD's Overview

Key Features

Specifications

Applications

ULN2003AD's Manufacturer

Conclusion

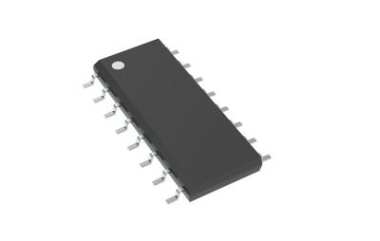

ULN2003AD's Overview

The ULN2003AD from Texas Instruments is a high-voltage, high-current NPN Darlington transistor array. It consists of seven independent Darlington pairs with common emitters, designed to handle inductive loads and interface directly with TTL and CMOS logic.

Each channel acts like a switch, making the ULN2003AD perfect for driving devices like relays, stepper motors, LEDs, and line drivers without external drivers or MOSFETs.



Key Features

Let's delve into the standout features that make the ULN2003AD a standout in the world of electronics:

· Each of the seven Darlington pairs can sink up to 500mA of current.

· The array supports a maximum collector-emitter voltage of 50V.

· Integrated clamp diodes protect against inductive kickback.

· Compatible with both TTL and CMOS logic inputs.

· Designed for surface mount (SOIC-16) packaging, saving PCB space.

· Operates reliably across a temperature range of -40°C to 125°C.

· Offers compact gull-wing leads for simplified soldering and rework.



Specifications

Now, let's take a closer look at the technical specifications that define the capabilities of the ULN2003AD:

Type

Parameter

Type

NPN

Configuration

Array 7

Number of Elements per Chip

7

Maximum Collector-Emitter Voltage (V)

50

Maximum Emitter Base Voltage (V)

30

Maximum Continuous DC Collector Current (A)

0.5

Operating Junction Temperature (°C)

-40 to 125

Maximum Collector-Emitter Saturation Voltage (V)

1.1@250uA@100mA|1.3@350uA@200mA|1.6@500uA@350mA

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

70

Packaging

Tube

Mounting

Surface Mount

Package Height

1.5(Max)

Package Width

4(Max)

Package Length

10(Max)

PCB changed

16

Standard Package Name

SO

Supplier Package

SOIC

Pin Count

16

Lead Shape

Gull-wing

 * ULN2003AD's Datasheet



Applications

The ULN2003AD is a workhorse component used in many control and actuation systems. Here are the most common application areas:

· Relay Drivers: Handles high-current switching without the need for external transistors.

· Stepper Motor Drivers: Each channel can drive a phase of a stepper motor with ease.

· LED & Display Drivers: Offers current sinking capabilities for multiple LED segments or arrays.

· DC Motor Control: Powers small DC motors in robotics and automation.

· Logic Buffers & Line Drivers: Converts low-current logic signals into high-current outputs for communication and control.



ULN2003AD's Manufacturer

Texas Instruments (TI),established in 1930, is a global leader in semiconductor and technology solutions, known for its pioneering contributions to the electronics industry. Specializing in the design and manufacture of analog and digital circuits, microcontrollers, and processors, TI has played a pivotal role in shaping technological advancements across diverse sectors, including industrial, automotive, consumer electronics, and communication.



Conclusion

The ULN2003AD offers a compact, efficient solution for driving high-current, inductive loads in a wide range of electronic applications. Its 7-channel Darlington configuration reduces design complexity while maintaining robust performance. With built-in protection features and compatibility with standard logic levels, the ULN2003AD is well-suited for relay control, motor driving, and LED interfacing tasks.
