1812AC103KAT2A: Features, Specs & More
When it comes to high-performance electronic components, precision and reliability matter most. The AVX 1812AC103KAT2A ceramic capacitor stands out in the electronics market due to its impressive voltage rating, robust construction, and versatile applications. In this comprehensive article, we'll delve into the intricacies of the 1812AC103KAT2A, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
1812AC103KAT2A's Overview

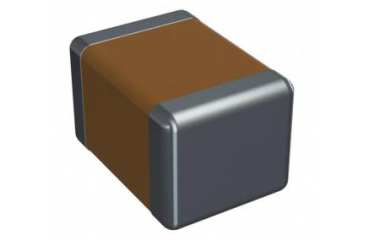

The AVX 1812AC103KAT2A is a surface mount, ceramic chip capacitor manufactured by Kyocera AVX. It belongs to the X7R dielectric family, offering a capacitance of 0.01 microfarads (uF) with a voltage rating of 1000 volts DC. Its compact 1812 package size and high temperature tolerance make it suitable for demanding electronic environments.
Key Features
Let's delve into the standout features that make the 1812AC103KAT2A a standout in the world of electronics:
· Capacitance value is precisely 0.01uF with a tolerance of 10%.
· Rated for high voltage up to 1000VDC, ensuring safe operation in power circuits.
· Uses X7R dielectric technology to maintain stability across temperature variations.
· Low Equivalent Series Resistance (ESR) supports efficient signal performance.
· Constructed as a flat, ceramic chip providing reliable mechanical durability.
· Designed for surface mount technology (SMT) with pad-style terminations.
· Suitable for microwave frequency applications thanks to low dissipation factor.
· Operates effectively across a wide temperature range from -55°C to 125°C.
· Packaged in tape and reel for easy automated assembly.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the 1812AC103KAT2A:
Type | Parameter |
Capacitance Value | 0.01uF |
Tolerance | 10% |
Voltage | 1000VDC |
Equivalent Series Resistance Type | Low |
Dielectric | X7R |
Technology | Standard |
Microwave Application | Yes |
Special Features | High Voltage |
Construction | Flat |
Mounting | Surface Mount |
Termination Style | Pad |
Number of Terminals | 2 |
Case Style | Ceramic Chip |
Dissipation Factor (%) | 2.5 |
Size (mm) | 4.6 X 3.2 X 2.2 |
Package/Case | 1812 |
Minimum Operating Temperature (°C) | -55 |
Maximum Operating Temperature (°C) | 125 |
Packaging | Tape and Reel |
Product Length (mm) | 4.6 |
Product Depth (mm) | 3.2 |
Product Height (mm) | 2.2(Max) |
Length Tolerance (mm) | ±0.5 |
Depth Tolerance (mm) | ±0.3 |
Applications
The AVX 1812AC103KAT2A capacitor is highly versatile and ideal for multiple electronics applications:
· High voltage power supply circuits that demand stable capacitance at elevated voltages.
· Microwave communication devices requiring low dissipation factor capacitors.
· Industrial electronics exposed to wide temperature ranges.
· Surface mount printed circuit boards (PCBs) needing compact, reliable capacitors.
· General-purpose filtering, decoupling, and timing circuits.
1812AC103KAT2A's Manufacturer
KYOCERA AVX is a leading global manufacturer & supplier of advanced electronic
components and innovative sensor, control, connectors and antenna solutions. With an expansive global footprint comprised of several dozen research, development, and manufacturing facilities spanning more than 15 countries, they utilize their talented personnel dedicated to innovation, component quality and customer service to enable a brighter future through technology.
Conclusion
The AVX 1812AC103KAT2A is a high voltage, X7R ceramic capacitor that combines compact size with excellent electrical and mechanical properties. Its 0.01uF capacitance and 1000V rating make it perfect for high-demand electronic and microwave applications.
