STM32G0B1CBT6: Features, Specs & More
In the fast-evolving world of electronics, choosing the right microcontroller unit (MCU) is crucial for developing efficient and reliable embedded systems. STMicroelectronics' STM32G0B1CBT6 MCU stands out as a powerful yet cost-effective choice tailored for industrial and consumer electronics projects. In this comprehensive article, we'll delve into the intricacies of the STM32G0B1CBT6, uncovering its definition, key features, specifications, applications, and a closer look at its manufacturer.
Catalog
STM32G0B1CBT6's Overview
The STM32G0B1CBT6 is a 32-bit microcontroller from STMicroelectronics' STM32 family. It is based on the ARM Cortex M0+ core architecture, delivering a balance of performance and energy efficiency. Designed to operate in a wide range of voltage conditions and temperature grades, this MCU is suitable for various embedded applications requiring dependable processing power with rich connectivity options.
Key Features
Let's delve into the standout features that make the STM32G0B1CBT6 a standout in the world of electronics:
· It uses a 32-bit ARM Cortex M0+ RISC core.
· The CPU can operate up to 64 MHz frequency.
· It includes 128KB of on-chip Flash program memory.
· The RAM size is 144KB, allowing for efficient data handling.
· It supports multiple communication interfaces including CAN, I2C, I2S, SPI, UART, USART, and USB.
· The MCU has 44 general-purpose input/output pins.
· It integrates 14 timers for precise control tasks.
· It features one ADC with 17 channels and 12-bit resolution.
· It also has one DAC with two channels and 12-bit resolution.
· The device operates over a voltage range of 1.7V to 3.6V, making it versatile for various power supplies.
· It is qualified for industrial temperature grades from -40°C to 85°C.

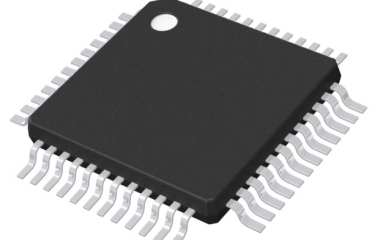

· The package type is a 48-pin Low-profile Quad Flat Package (LQFP) optimized for surface mount technology.
Specifications
Now, let's take a closer look at the technical specifications that define the capabilities of the STM32G0B1CBT6:
Type | Parameter |
Family Name | STM32 |
Instruction Set Architecture | RISC |
Device Core | ARM Cortex M0+ |
Core Architecture | ARM |
Maximum CPU Frequency (MHz) | 64 |
Maximum Clock Rate (MHz) | 64 |
Data Bus Width (bit) | 32 |
Program Memory Type | Flash |
Program Memory Size | 128KB |
RAM Size | 144KB |
Programmability | Yes |
Interface Type | CAN/I2C/I2S/SPI/UART/USART/USB |
Number of I/Os | 44 |
No. of Timers | 14 |
Number of ADCs | 1 |
ADC Channels | 17 |
ADC Resolution (bit) | 12 |
Number of DACs | 1 |
DAC Channels | 2 |
DAC Resolution (bit) | 12 |
USART | 6 |
UART | 2 |
USB | 1 |
SPI | 3 |
I2C | 3 |
I2S | 2 |
CAN | 2 |
Ethernet | 0 |
Minimum Operating Supply Voltage (V) | 1.7 |
Typical Operating Supply Voltage (V) | 1.8|2.5|3.3 |
Maximum Operating Supply Voltage (V) | 3.6 |
Minimum Operating Temperature (°C) | -40 |
Maximum Operating Temperature (°C) | 85 |
Supplier Temperature Grade | Industrial |
Packaging | Tray |
Mounting | Surface Mount |
Package Height | 1.4 |
Package Width | 7 |
Package Length | 7 |
PCB changed | 48 |
Standard Package Name | QFP |
Supplier Package | LQFP |
Pin Count | 48 |
Applications
The STM32G0B1CBT6 MCU fits seamlessly into a variety of embedded systems, including:
· Industrial automation and control systems requiring robust real-time processing.
· Consumer electronics needing efficient power management and rich peripheral support.
· Automotive subsystems with CAN communication for in-vehicle networking.
· IoT devices requiring low power consumption and flexible interfaces.
· Motor control applications leveraging multiple timers and ADC channels.
STM32G0B1CBT6's Manufacturer
STMicroelectronics, often abbreviated as ST, is a global semiconductor manufacturer with a long-standing reputation for producing innovative and high-quality electronic components. With headquarters in Geneva, Switzerland, and a strong international presence, STMicroelectronics is a leading player in the semiconductor industry. They specialize in designing and manufacturing a wide range of semiconductor devices, including microcontrollers, sensors, power management solutions, and more. STMicroelectronics is trusted by industries worldwide, including automotive, consumer electronics, industrial, and telecommunications, for their cutting-edge technology and commitment to advancing the field of electronics.
Conclusion
The STM32G0B1CBT6 offers an excellent balance of performance, memory, and peripheral options within a compact 48-pin package. Its ARM Cortex M0+ core ensures efficient processing at up to 64 MHz, while the comprehensive communication interfaces and analog peripherals make it highly adaptable.
