What Are Ceramic Resonators?
In contemporary electronic devices, frequency control is a pivotal factor in ensuring system stability. Ceramic resonators, as a fundamental electronic component, are widely utilized across various electronic products due to their cost-effectiveness, compact size, and robust shock resistance. This article delves into the definition, working principles, characteristics, advantages, and primary applications of ceramic resonators.
Catalog
I. What Are Ceramic Resonators?
II. How Do Ceramic Resonators Work?
III. Key Characteristics and Advantages
I. What Are Ceramic Resonators?

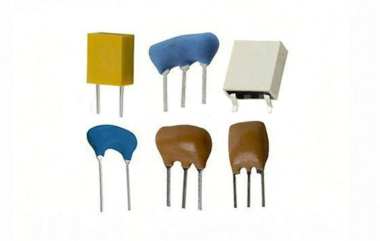

A ceramic resonator is an electronic component made from piezoelectric ceramic materials such as lead zirconate titanate (PZT). Its primary function is to provide a stable reference frequency signal. The operating principle is based on the piezoelectric effect—when an external voltage is applied, the ceramic material mechanically vibrates, generating oscillations at a specific frequency. Compared with quartz crystals, ceramic resonators offer benefits such as lower cost, smaller size, and better shock resistance, making them well-suited for applications where ultra-high frequency stability is not required.
II. How Do Ceramic Resonators Work?
At the core of a ceramic resonator is a piezoelectric ceramic element coated with metal electrodes on both sides. When an alternating voltage is applied, the ceramic vibrates mechanically under the influence of the electric field, producing the piezoelectric effect. The vibration frequency is determined by the thickness and shape of the ceramic material, typically ranging from several kilohertz up to tens of megahertz. The resulting oscillation signal serves as a clock source to ensure synchronized operation within electronic systems.
III. Key Characteristics and Advantages
· Low Cost: Ceramic resonators are significantly cheaper to manufacture than quartz crystals, making them ideal for large-scale production.
· Compact Size: Their small form factor allows use in devices with limited space.
· Strong Shock Resistance: The ceramic materials provide excellent durability and resistance to mechanical shock, suitable for harsh environments.
· Frequency Stability: While not as stable as quartz crystals—which can achieve frequency stability as tight as ±0.001%—ceramic resonators typically maintain stability around ±0.5%, sufficient for many general-purpose applications.
· Low Power Consumption: Suitable for devices with strict power consumption requirements.
IV. Typical Applications
· Microcontrollers and Microprocessors: Used as clock sources to ensure synchronized internal operations.
· Consumer Electronics: Employed in remote controls, toys, home appliances, and more to provide stable frequency references.
· Automotive Electronics: Utilized in engine control units (ECUs), tire pressure monitoring systems (TPMS), and other vehicle electronics to maintain system stability.
· Communication Devices: Incorporated in wireless communication equipment like Wi-Fi routers and Bluetooth modules to guarantee accurate frequency signals.
· Industrial Control Systems: Provide reliable timing references for control systems and embedded devices.
V. Conclusion
With the rapid growth of emerging technologies such as the Internet of Things (IoT), smart home devices, wearable technology, and electric vehicles, the demand for ceramic resonators continues to rise. Especially in applications sensitive to cost but with moderate frequency stability requirements, ceramic resonators are an ideal choice due to their low power consumption, affordability, and compact size.
